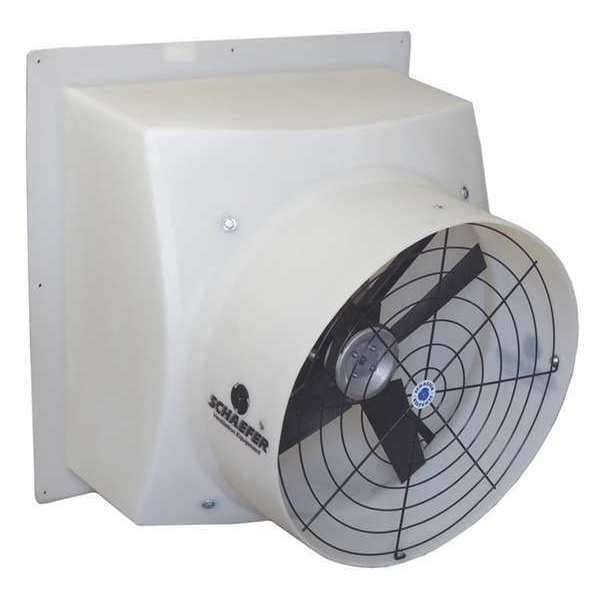

Agricultural Exhaust Fan, 20", 3730 cfm, 115/230V
| Number of Speeds | 1 |
|---|---|
| CFM @ 0.000-In. SP | 3,730 |
| Item | Agricultural Exhaust Fan |
| Free Area (Square-Ft.) | 3.75 |
| HP | 1/3 hp |
| Venturi Clearance Dia. (In.) | 21 |
| Motor Insulation | Class B |
| Frame Material | Polyethylene |
| Hz | 60 |
| Shaft Dia. (In.) | 1/2 |
| Agency Compliance | UL Listed Motor |
| Opening Required W (In.) | 23-1/2 |
| Motor Type | 3-Phase |
| Mounting Location | Wall |
| Fan RPM | 1,725 |
| For Use With | General Exhaust Application |
| Height (In.) | 23-1/4 |
| Width (In.) | 23-5/8 |
| Max. Depth (In.) | 23-3/8 |
| Frame Finish | Polished |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Blades | 3 |
| Opening Required H (In.) | 24-3/4 |
| Includes | Shutter |
| Flange Width (In.) | 2-1/4 |
| CFM/Watt @ 0.150-In. SP | 10.9 |
| Propeller Material | Polypropylene |
| Voltage | 115/230 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| CFM/Watt @ 0.000-In. SP | 13.9 |
| Phase | 1 |
| Type | Direct Drive, Preassembled, Adjustable Speed |
| CFM @ 0.050-In. SP | 3,533 |
| CFM @ 0.150-In. SP | 3,075 |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Motor RPM | 1,725 |
| Propeller Dia. (In.) | 20 |
| Watts | 246 |
| CFM/Watt @ 0.050-In. SP | 12.8 |
| Full Load Amps | 3.8/1.9 |
| CFM @ 0.100-In. SP | 3,318 |
| CFM/Watt @ 0.100-In. SP | 12.1 |
| Guard Material | Steel |
| Standards | UL Listed |
| Blade Material | Polyethylene |
| Overall Height | 23-1/4 in |
| Overall Width | 23-5/8 in |
| Housing Material | Polyethylene |
| Flange Width | 2-1/4 in |
| Electrical Connection | Hardwired |
| Maximum Ambient Operating Temperature | 104 deg F |
| Drive Type | Direct Drive |
| Wattage | 246 W |
| Shaft Diameter | 1/2 in |
| Includes Dehumidistat | No |
| Venturi Diameter | 21 in |
| Overall Depth | 23-3/8 in |
| Exhaust Airflow @ 0.100 in SP | 3,318 cfm |
| For Cut-Out Width | 23-1/2 in |
| Full Load Current | 3.8 A |
| Speed Controllable | Yes |
| Guard Finish | Powder Coated |
| For Minimum Wall Thickness | 2 in |
| Fan Style | Cylinder |
| Assembled | Assembled |
| Motor Horsepower | 0.3333 HP |
| Free Area | 3.8 sq ft |
| Guard Type | Exhaust |
| Ventilation Type | Exhaust |
| Overall Diameter | 20 in |
| For Maximum Wall Thickness | 10 in |
| For Cut-Out Length | 23-1/2 in |
| Profile Height Family | High |
| Maximum Airflow | 5,000 cfm |
| Blade Diameter | 20 in |
| Housing Finish | Polished White Polypethylene |
| Nameplate Voltage | 115/230V AC |
| Number of Shutters | 1 |
| Number of Fans | 1 |
| Exhaust Airflow @ 0.000 in SP | 3,730 cfm |
| For Cut-Out Height | 24-3/4 in |
| Manufacturer Warranty Length | 2 yr |
| Includes Motor | Yes |
| Supply Airflow @ 0.000 in SP | 3,730 cfm |
| Frequency | 60 Hz |
| Motor Speed | 1,725 rpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
