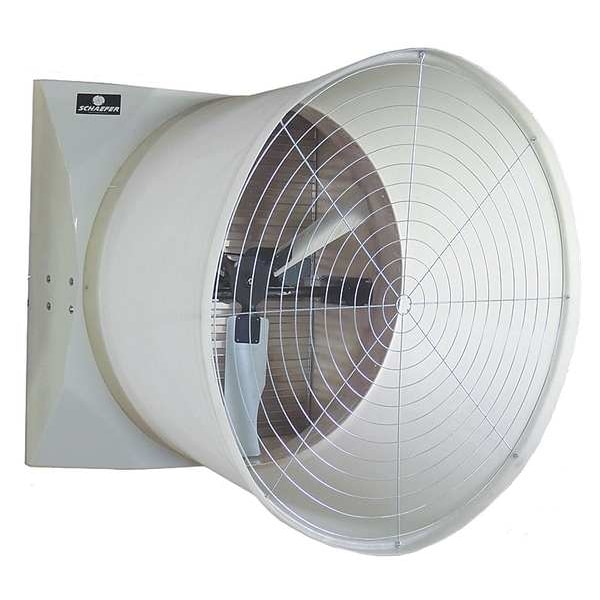

Cone Exhaust Fan, 57 In, 115/230V, 1 PH
| Type | Cone, Belt Drive |
|---|---|
| Full Load Amps | 13.6/6.8 |
| Motor Insulation | Class B |
| Max. Depth (In.) | 62-3/4 |
| Opening Required W (In.) | 62-1/2 |
| Mesh Size | 2-1/2 in |
| Opening Required H (In.) | 62-1/2 |
| Shaft Dia. (In.) | 1 |
| Mounting Location | Wall |
| Cone Depth (In.) | 34-3/4 |
| CFM/Watt @ 0.000-In. SP | 23.3 |
| Motor RPM | 1725 |
| Item | Agricultural Exhaust Fan |
| Voltage | 115/230 |
| CFM @ 0.100-In. SP | 28,600 |
| Flange Width (In.) | 3 |
| Phase | 1 |
| CFM/Watt @ 0.050-In. SP | 21.2 |
| Number of Blades | 3 |
| Free Area (Square-Ft.) | 21 |
| Hz | 60 |
| Frame Finish | Gel Coated |
| Watts | 1,486 |
| CFM @ 0.050-In. SP | 30,500 |
| Width (In.) | 67-1/2 |
| CFM/Watt @ 0.100-In. SP | 19.3 |
| Venturi Clearance Dia. (In.) | 57-5/8 |
| Cone Dia. (In.) | 67-3/8 |
| Height (In.) | 67-1/2 |
| Propeller Material | Galvanized Steel |
| Frame Material | Fiberglass |
| Motor Enclosure | Totally Enclosed Air Over |
| Bearing Type | Self-Aligning Pillow Block |
| Motor Type | 3-Phase |
| CFM @ 0.000-In. SP | 32,400 |
| HP | 1 1/2 hp |
| Propeller Dia. (In.) | 57 |
| Max. Ambient Temp. (F) | 104 |
| CFM @ 0.150-In. SP | 26,000 |
| Fan RPM | 540 |
| CFM/Watt @ 0.150-In. SP | 17 |
| Venturi Depth (In.) | 28 |
| Includes | Belt Tensioner, Cone, Inlet Shutter |
| Flange Width | 3 in |
| Venturi Depth | 28 in |
| Manufacturer Warranty Length | 2 yr |
| Assembled | Assembled |
| Exhaust Airflow @ 0.100 in SP | 28,600 cfm |
| Nameplate Voltage | 115/230V AC |
| Electrical Connection | Hardwired |
| Frequency | 60 Hz |
| Exhaust Airflow @ 0.000 in SP | 32,400 cfm |
| Thermal Protection | Yes |
| Overall Diameter | 67-3/8 in |
| Number of Fans | 1 |
| Overall Height | 67-1/2 in |
| Venturi Diameter | 57-1/2 in |
| Ventilation Type | Exhaust |
| For Cut-Out Length | 62-1/2 in |
| Guard Type | Exhaust |
| Profile Height Family | High |
| Guard Finish | Zinc Plated |
| Number of Shutters | 1 |
| Free Area | 21 sq ft |
| Guard Material | Steel |
| Full Load Current | 13.6 A |
| For Cut-Out Height | 62-1/2 in |
| Includes Motor | Yes |
| Wattage | 1,486 W |
| Housing Material | Fiberglass |
| Number of Speeds | 1 |
| Cone Depth | 34 3/4 in |
| Drive Type | Belt Drive |
| Shaft Diameter | 1 in |
| Motor Speed | 1,725 rpm |
| Fan Style | Cone |
| Maximum Ambient Operating Temperature | 104 deg F |
| Speed Controllable | No |
| For Cut-Out Width | 62-1/2 in |
| Maximum Airflow | 35,000 cfm |
| Overall Width | 67-1/2 in |
| Blade Finish | Galvanized |
| Blade Diameter | 57 in |
| Housing Finish | Gel Coat |
| Includes Dehumidistat | No |
| For Minimum Wall Thickness | 2 in |
| Motor Horsepower | 1.5 HP |
| Blade Material | Steel |
| Overall Depth | 34-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
