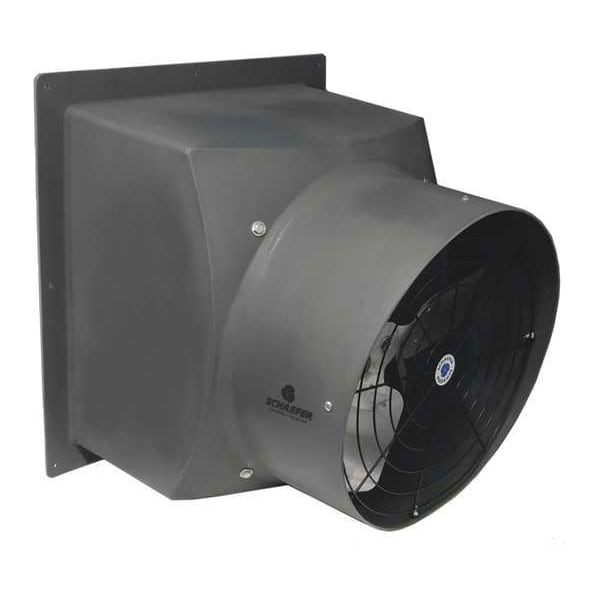

Direct Drive, Hazardous Location, 16 in.
| Item | Hazardous Location Exhaust Fan |
|---|---|
| Blade Dia. | 16 in |
| Fan Voltage | 115/230V AC |
| Drive Package With Motor Included | No |
| Drive Package Included | No |
| CFM @ 0.500-In. SP | 2960 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Exhaust/Supply Fan Motor HP | 1/3 hp |
| Type | Direct Drive, Hazardous Location |
| Number of Blades | 3 |
| CFM @ 0.000-In. SP | 2,960 cfm |
| Phase | 1 |
| Full Load Amps | 3.6/1.8 |
| Hazardous Location Class | Class I, Div 1, Group C and D; Class II, Div 1, Group F and G |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Type | Single Phase |
| Frame Finish | Polished |
| Frame Material | Polyethylene |
| Standards | UL Listed |
| Speed Controllable | No |
| Exhaust Airflow @ 0.100 in SP | 2,950 cfm |
| Frequency | 60 Hz |
| Profile Height Family | High |
| Overall Height | 19-1/4 in |
| Assembled | Assembled |
| Fan Style | Cylinder |
| Motor Horsepower | 0.3333 HP |
| Blade Material | Aluminum |
| Supply Airflow @ 0.000 in SP | 2,960 cfm |
| Electrical Connection | Hardwired |
| Housing Finish | Polished White Polypethylene |
| Drive Type | Direct Drive |
| Thermal Protection | Yes |
| Exhaust Airflow @ 0.000 in SP | 3,220 cfm |
| Number of Speeds | 1 |
| Manufacturer Warranty Length | 2 yr |
| Overall Depth | 24-1/2 in |
| Number of Fans | 1 |
| Nameplate Voltage | 115/230V AC |
| Guard Material | Steel |
| Full Load Current | 3.6 A |
| For Minimum Wall Thickness | 2 in |
| Overall Width | 19-1/4 in |
| For Cut-Out Width | 19-1/2 in |
| For Cut-Out Height | 20-1/2 in |
| Overall Diameter | 16 in |
| Blade Diameter | 16 in |
| Maximum Airflow | 5,000 cfm |
| Housing Material | Polyethylene |
| Number of Shutters | 1 |
| For Cut-Out Length | 19-1/2 in |
| Motor Speed | 1,725 rpm |
| Guard Type | Exhaust |
| For Maximum Wall Thickness | 10 in |
| Includes Motor | No |
| Includes Dehumidistat | No |
| Ventilation Type | Exhaust |
| Guard Finish | Powder Coated |
| Wattage | 414 W |
| Voltage | 115/230 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
