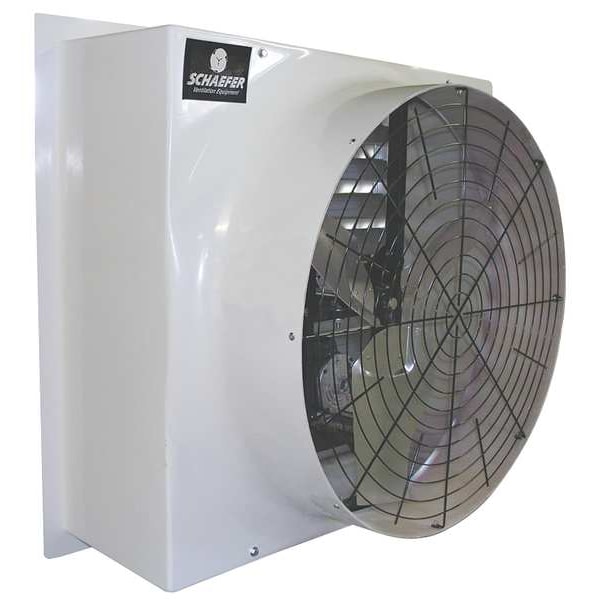

Exh Fan, B/D, 48 Dia, CFM 23,391,115/230 V
| Type | Belt Drive, Assembled |
|---|---|
| Agency Compliance | UL Listed Motor |
| CFM @ 0.100-In. SP | 20,576 |
| Item | Agricultural Exhaust Fan |
| Fan RPM | 365 |
| CFM @ 0.050-In. SP | 22,365 |
| Max. Depth (In.) | 26 |
| Propeller Dia. (In.) | 48 |
| Bearing Type | Permanently Lubricated Sealed Ball |
| Flange Width (In.) | 2-3/4 |
| Frame Finish | Polished |
| For Use With | General Exhaust Application |
| Propeller Material | Galvanized Steel |
| HP | 1 hp |
| Height (In.) | 55-1/2 |
| Motor Insulation | Class B |
| Number of Blades | 5 |
| Voltage | 115/230 |
| Width (In.) | 55-1/4 |
| Includes | Shutter, Belt Tensioner, Outlet Guard |
| Frame Material | Fiberglass |
| Watts | 746 |
| Max. Ambient Temp. (F) | 104 |
| Venturi Depth (In.) | 13 |
| CFM @ 0.150-In. SP | 18,563 |
| Mounting Location | Wall |
| Phase | 1 |
| Motor RPM | 1725 |
| CFM @ 0.000-In. SP | 23,391 |
| Motor Type | 3-Phase |
| Free Area (Square-Ft.) | 21 |
| Opening Required H (In.) | 56-1/4 |
| Full Load Amps | 9.8/4.9 |
| Venturi Clearance Dia. (In.) | 49 |
| Opening Required W (In.) | 55-3/4 |
| Shaft Dia. (In.) | 5/8 |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| Venturi Depth | 13 in |
| Standards | UL Listed |
| Flange Width | 2-3/4 in |
| Drive Type | Belt Drive |
| Wattage | 746 W |
| Blade Material | Steel |
| Guard Finish | Powder Coated |
| Overall Width | 55-1/4 in |
| Motor Speed | 1,725 rpm |
| Overall Height | 55-1/2 in |
| Housing Material | Fiberglass |
| Number of Shutters | 1 |
| For Maximum Wall Thickness | 12 in |
| Includes Motor | Yes |
| For Cut-Out Width | 55-3/4 in |
| Guard Type | Exhaust |
| Free Area | 23.4 sq ft |
| Exhaust Airflow @ 0.100 in SP | 20,576 cfm |
| Number of Speeds | 1 |
| Maximum Ambient Operating Temperature | 104 deg F |
| Motor Horsepower | 1 HP |
| Includes Dehumidistat | No |
| Speed Controllable | No |
| For Cut-Out Length | 55-3/4 in |
| Assembled | Assembled |
| Thermal Protection | Yes |
| Housing Finish | Polished Fiberglass |
| Maximum Airflow | 23,391 cfm |
| For Cut-Out Height | 56-1/4 in |
| Blade Diameter | 48 in |
| Fan Style | Cylinder |
| Profile Height Family | High |
| For Minimum Wall Thickness | 2 in |
| Frequency | 50 Hz, 60 Hz |
| Overall Depth | 26 in |
| Number of Fans | 1 |
| Supply Airflow @ 0.000 in SP | 23,391 cfm |
| Ventilation Type | Exhaust |
| Full Load Current | 8.4 A |
| Electrical Connection | Hardwired |
| Overall Diameter | 48 in |
| Nameplate Voltage | 115/230V AC |
| Manufacturer Warranty Length | 2 yr |
| Shaft Diameter | 5/8 in |
| Blade Finish | Galvanized |
| Exhaust Airflow @ 0.000 in SP | 23,391 cfm |
| Venturi Diameter | 49 in |
| Guard Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
