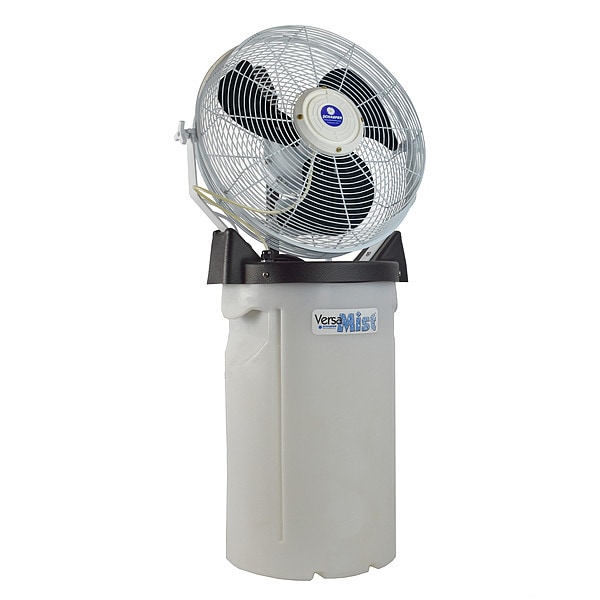

Industrial Misting Fan 18" Non-Oscillating, 115VAC, 1400/1800/2200 CFM
| Blade Diameter | 18 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 3 |
| Phase | 1 |
| Drive Type | Direct |
| Blade Material | Steel |
| Sound Level | 60/52dBA |
| CFM High | 2,200 |
| Mobile/Stationary | Stationary |
| Full Load Amps | 1.45 |
| Thermal Protection | Auto |
| Voltage | 115VAC |
| CFM Low | 1,400 |
| Environmental Applications | Industrial |
| Motor Insulation | Class A |
| Standards | UL507 Motor and OSHA Guard |
| Motor HP | 0.1 |
| Assembled | No |
| Application | Spot Cooling and People Cooling |
| NEMA Plug Configuration | 5-15P |
| Height | 42 in |
| Guard Material | Steel |
| Number of Conductors | 3 |
| Max. Ambient Temp. | 107 deg F |
| Watts | 130 |
| Wire Guard Finish | White Powder Coated |
| CFM Medium | 1800 |
| Motor Enclosure | Totally Enclosed Air Over |
| Hz | 60 |
| Housing Material | Steel |
| Requires | Assembly |
| Bearing Type | Sealed Ball |
| Max. Depth | 15 in |
| Width | 24 in |
| Shaft Dia. | 1/2 in |
| Motor RPM | 1000/1400/1570 |
| Item | Industrial Misting Fan |
| Fan Style | Misting |
| Fan Accessory Style | Misting |
| Includes | 10 gal. Tank, 5 hr. Run Time, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs |
| Air Velocity @ 20 Ft. | 190/270/310 fpm |
| Number of Blades | 3 |
| Outside Dia. | 20" |
| Fan Mounting Location | Pedestal |
| Motor Type | Permanent Split Capacitor |
| Frame Material | Steel |
| Air Flow | 1400/1800/2200 CFM |
| Wheeled Base | Stationary |
| Assembly Required | Yes |
| Fan Housing Material | Steel |
| Amps | 1.5/1.3/1 |
| Fan Cord Length | 25 ft |
| RPM | 1000/1400/1570 |
| Depth | 15 in |
| Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
