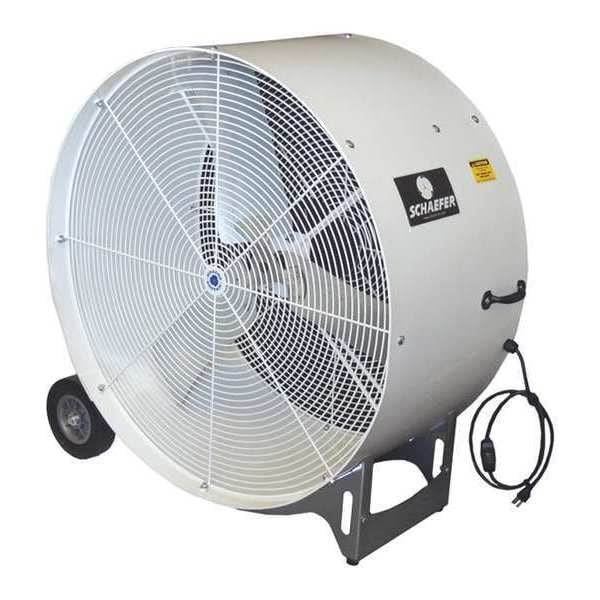

Standard Duty Air Circulator, Floor Mount, 36 in Blade Dia, 115V, 10,900/16,600 cfm
| Blade Diameter | 36 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 10,900/16,600 cfm |
| Drive Type | Belt Drive |
| Blade Material | Aluminum |
| Sound Level | 77 dBA |
| Item | Air Circulator |
| CFM High | 11,000 |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| Mobile/Stationary | Mobile |
| CFM Low | 7,700 |
| Bearing Type | Ball, Permanently Lubricated and Sealed |
| Outside Dia. | 37-1/4 in |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Height | 39-3/4 in |
| Includes | Stacking Tabs |
| Thermal Protection | Automatic |
| Air Velocity @ 10 Ft. | 725/525 fpm |
| Max. Ambient Temp. | 104 deg F |
| Motor RPM | 1,075/850 RPM |
| Air Velocity @ 40 Ft. | 400/225 |
| Fan Style | Standard Duty |
| Motor Type | Permanent Split Capacitor |
| Watts | 485/328 W |
| Assembled | Yes |
| Fan Mounting Location | Floor |
| Number of Blades | 3 |
| Air Velocity @ 20 Ft. | 600/450 fpm |
| CFM/Watt | 22.7/23.5 |
| Max. Depth | 19-3/4 in |
| Fan Accessory Style | Standard |
| Hz | 60 |
| Standards | OSHA-Compliant wire guards |
| Guard Material | Steel |
| Motor Enclosure | Totally Enclosed Air Over |
| Width | 40-3/4 in |
| Wire Guard Finish | Gloss Powder Coated |
| Housing Material | Polyethylene |
| Shaft Dia. | 1/2 in |
| Depth | 19-3/4 in |
| Fan Cord Length | 12 ft |
| RPM | 1075/850 |
| Amps | 5.2/3.5 |
| Fan Housing Material | Polyethylene |
| Assembly Required | No |
| Wheeled Base | Mobile |
| Material | Polyethylene |
| Color | White |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
