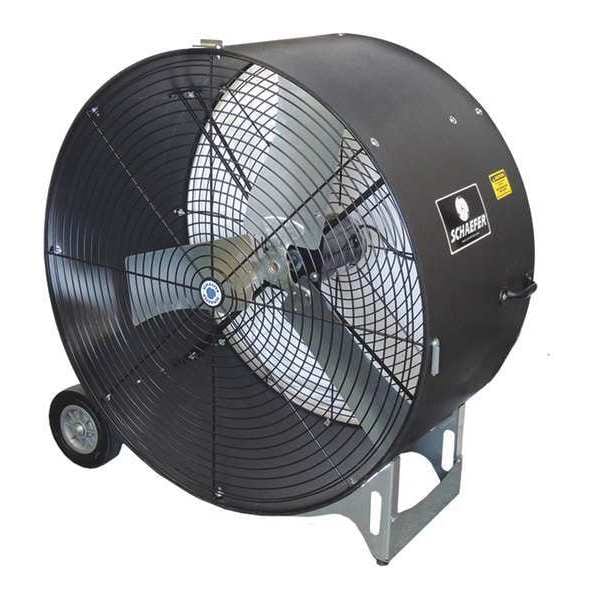

Standard Duty Air Circulator, Floor Mount, 42 in Blade Dia, 115V, 7700/11,000 cfm, Non-Oscillating
| Blade Diameter | 42 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 1 HP |
| Air Flow | 7700/11,000 cfm |
| Drive Type | Belt Drive |
| Blade Material | Galvanized Steel |
| Sound Level | 72 dBA |
| Item | Air Circulator |
| CFM High | 16,600 |
| Outside Dia. | 43-3/4 in |
| Standards | UL, cUL, CSA |
| Fan Style | Standard Duty |
| Air Velocity @ 10 Ft. | 700/450 fpm |
| Number of Blades | 3 |
| Width | 45-1/2 in |
| Motor Insulation | Class B |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Accessory Style | Standard |
| Watts | 1129/425 W |
| Wire Guard Finish | Gloss Powder Coated |
| Motor Type | Permanent Split Capacitor |
| Hz | 60 |
| CFM/Watt | 14.7/25.6 |
| Mobile/Stationary | Mobile |
| Air Velocity @ 40 Ft. | 300 fpm |
| Application | Air Circulation |
| Shaft Dia. | 5/8 in |
| Air Velocity @ 20 Ft. | 425 fpm |
| Height | 45-3/4 in |
| Environmental Applications | Industrial |
| Max. Ambient Temp. | 104 deg F |
| Max. Depth | 22 in |
| Motor RPM | 565/379 RPM |
| Assembled | Yes |
| Bearing Type | Self-Aligning Pillow Block Bearings |
| CFM Low | 10,900 |
| Housing Material | Polyethylene |
| Thermal Protection | Automatic |
| Fan Mounting Location | Floor |
| Guard Material | Steel |
| Fan Housing Material | Polyethylene |
| Amps | 12.3/5.6 |
| Depth | 22 in |
| Wheeled Base | Mobile |
| Fan Cord Length | 5 ft |
| Assembly Required | No |
| RPM | 565/379 |
| Material | Polyethylene |
| Color | Black |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
