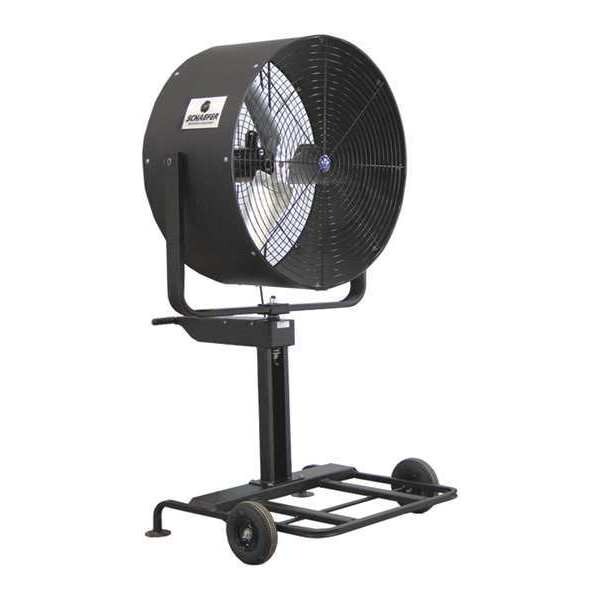

Standard Duty Air Circulator, Pedestal Mount, 36 in Blade Dia, 115/230V, 11,700 cfm, Oscillating
| Blade Diameter | 36 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 1 |
| Voltage | 115/230V |
| Phase | 1 |
| Motor HP | 0.5 HP |
| Air Flow | 11,700 cfm |
| Drive Type | Direct Drive |
| Blade Material | Steel |
| Item | Air Circulator |
| Guard Material | Steel |
| Air Velocity @ 20 Ft. | 350 fpm |
| Motor Insulation | Class F |
| Watts | 450 W |
| Mobile/Stationary | Mobile |
| Includes | Heavy Duty Mobile Cart w/8" Pneumatic Casters |
| Outside Dia. | 37-1/2 in |
| Fan Mounting Location | Pedestal |
| Thermal Protection | Automatic |
| NEMA Plug Configuration | 5-15p |
| Height | 75 in |
| Bearing Type | Sealed Ball |
| Shaft Dia. | 5/8 in |
| Standards | UL Motor and OSHA Guard |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Hz | 60 |
| Full Load Amps | 6.0/3.5 |
| CFM High | 11,693 |
| Max. Ambient Temp. | 104 deg F |
| Width | 42 in |
| Housing Material | Polyethylene |
| Motor Enclosure | Totally Enclosed Air Over |
| Motor RPM | 825 RPM |
| Motor Type | Permanent Split Capacitor |
| Environmental Applications | Industrial |
| Number of Conductors | 3 |
| Fan Style | Standard Duty |
| Max. Depth | 45 in |
| Assembled | Partially Assembled |
| Requires | Assembly |
| Fan Accessory Style | Standard |
| Wire Guard Finish | Powder Coated |
| Number of Blades | 3 |
| RPM | 825 |
| Assembly Required | Yes |
| Amps | 7/3.5 |
| Wheeled Base | Mobile |
| Depth | 45 in |
| Fan Housing Material | Polyethylene |
| Fan Cord Length | 5 ft |
| Material | Polyethylene |
| Color | Black |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
