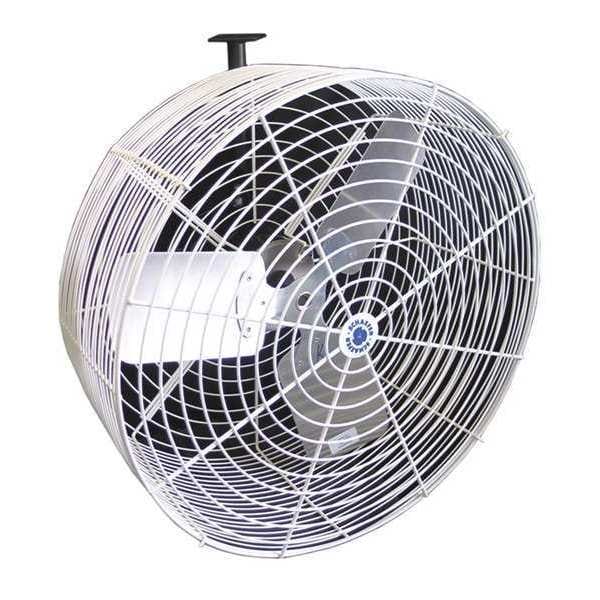

Standard Duty Industrial Fan, Wall Mount, 24 in Blade Dia, 230/460V, 7,750 cfm, Non-Oscillating
| Blade Diameter | 24 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 1 |
| Voltage | 230/460V |
| Phase | 3 |
| Motor HP | 0.5 HP |
| Air Flow | 7,750 cfm |
| Drive Type | Direct Drive |
| Blade Material | Aluminum |
| Item | Industrial Fan |
| Fan Accessory Style | Standard |
| Motor Type | Permanent Split Capacitor |
| Number of Blades | 3 |
| Max. Depth | 15-1/2 in |
| CFM High | 7,756 |
| Motor Insulation | Class B |
| Application | Spot Cooling and People Cooling |
| Motor Enclosure | Totally Enclosed Air Over |
| Assembled | Yes |
| Includes | Wall Mount Bracket |
| Motor RPM | 1,725 RPM |
| Width | 27 in |
| Hz | 60 |
| Housing Material | Steel |
| Mobile/Stationary | Stationary |
| Bearing Type | Ball |
| Fan Mounting Location | Wall |
| Max. Ambient Temp. | 104 deg F |
| Thermal Protection | Automatic |
| Outside Dia. | 27 in |
| Environmental Applications | Industrial |
| Guard Material | Galvanized Steel |
| Wire Guard Finish | Powder Coated |
| Height | 27 in |
| Fan Style | Standard Duty |
| Requires | Hard wire Installation |
| Shaft Dia. | 5/8 in |
| Watts | 166 W |
| Depth | 15-1/2 in |
| Fan Housing Material | Steel |
| Amps | 1.2/0.6 |
| Wheeled Base | Stationary |
| Assembly Required | No |
| RPM | 1725 |
| Material | Steel |
| Color | White |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
