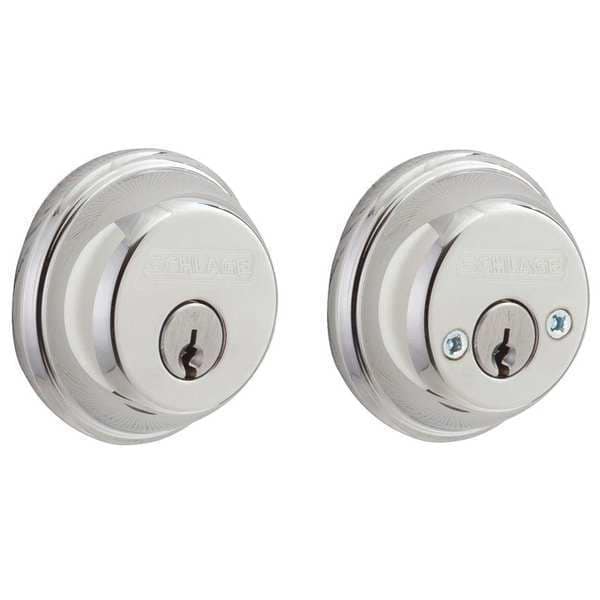

Deadbolt, Bright Chrome, Double Cylinder
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Residential |
| Lockset Grade | 1 |
| Series | B |
| For Door Thickness | 1-3/8 to 1-3/4 in |
| Lockset Finish | Bright Chrome |
| Keyway Type | C Keyway |
| Key Type | Keyed Different |
| Standards | ANSI/BHMA A156.40-2015 |
| ADA Compliant | No |
| Faceplate Dimensions | 1 in x 2-1/4 in |
| Material | Steel |
| Ligature Resistant | No |
| Item | Deadbolt Lock |
| Lockset Fire Rating | Not Rated |
| Throw Length | 1 in |
| Mortise/Cylindrical | Cylindrical |
| Strike | Square Corner |
| Number of Keys | 2 |
| For Use With | Keyed Knobs and Lever |
| Pins | 5 |
| Strike Dim. | 1-1/8 in x 2-3/4 in |
| Includes | Latch, Strike Plate |
| Backset | 2-3/8 in |
| Cylinder | Double |
| Security Type | Light-Duty |
| Application | Residential |
| Grade | 1 |
| Hardware | Included |
| Keying | Different |
| Number of Pins | 5 |
| ANSI/BHMA Finish | Bright Chromium-Plated |
| Faceplate Height | 2-1/4 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | Not Applicable |
| Visual Indicator Message | No Message |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Locking/Unlocking Access - Inside | Keyway |
| ANSI Grade | 1 |
| Door Thickness - Maximum | 1-3/8 in |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Height | 2-3/4 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Includes Core | Core Included |
| Strike Plate Width | 1-1/8 in |
| Faceplate Width | 1 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
