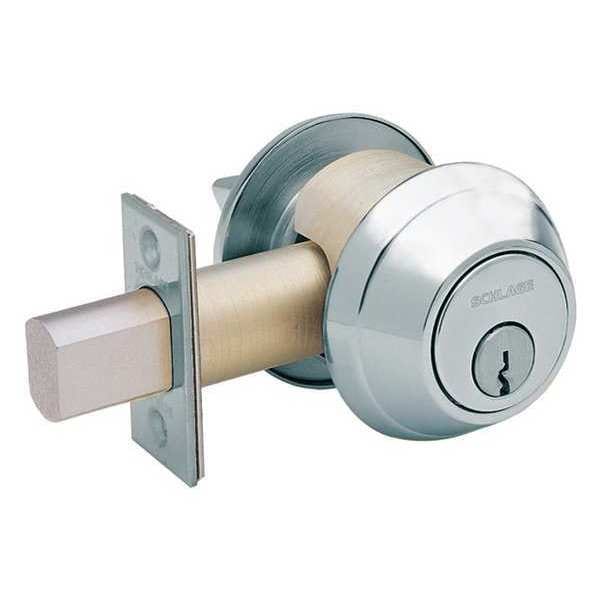

Deadbolt, HD, Satin Chrome, 6 Pins
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Location Type | Commercial |
| Lockset Grade | 1 |
| Series | B660 |
| For Door Thickness | 1-3/8 to 1-7/8 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Everest 29 S |
| Key Type | Keyed Different |
| Standards | ANSI/BHMA A156.36-2020, ASTM E1886, ASTM E1996, ASTM E330, CAN/ULC-S104, UL and cUL Listed |
| ADA Compliant | Yes |
| Faceplate Dimensions | 1-1/8 in x 2-1/4 in |
| Lockset Fire Rating | Not Rated |
| Backset | 2-3/8 in |
| Item | Deadbolt Lock |
| Strike | Square Corner |
| Security Type | Heavy-Duty |
| Includes | Hardware |
| Material | Zinc |
| Strike Dim. | 1-1/4 in x 2-3/4 in |
| Ligature Resistant | No |
| Mortise/Cylindrical | Cylindrical |
| Pins | 6 |
| Number of Keys | 2 |
| Throw Length | 1 in |
| Finish | Satin Chrome |
| Application | Commercial |
| Grade | 1 |
| Type | Heavy Duty |
| Keying | Different |
| Number of Pins | 6 |
| Front Size Dimension | 1-1/8 in x 2-1/4 in |
| Faceplate Width | 1-1/8 in |
| Locking/Unlocking Access - Outside | Keyway |
| Door Thickness - Minimum | 2 in |
| Includes Hardware | Hardware Included |
| Strike Plate Width | 1-1/8 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Includes Core | Core Included |
| Strike Plate Height | 2-3/4 in |
| Door Thickness - Maximum | 2-1/2 in |
| Faceplate Height | 2-1/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Ligature-Resistant | Not Ligature-Resistant |
| UL Fire Rating | UL10C |
| Fire Rating | 3 hr |
| Visual Indicator Message | No Message |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
