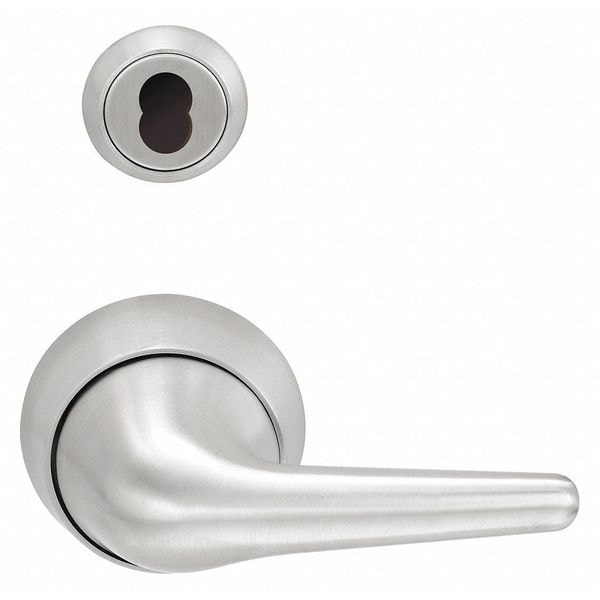

Door Lever Lockset, Mechanical, Mortise
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Storeroom, Closet |
| Lockset Grade | Grade 1 |
| Style | Anti Ligature Lever |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Lockset Finish | Stainless Steel |
| Keyway Type | None |
| Key Type | Not Keyed |
| Ligature Resistant | Yes |
| For Use With | Various Door Types |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Key Material | Not Applicable |
| Item | Door Lockset |
| Series | 9000 |
| Includes | Strike |
| Handle Material | Steel |
| Voltage | Not Applicable |
| Strike Type | Curved Lip |
| Standards | ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437 |
| Location Type | Healthcare, Institutional |
| Lockset Performance Strength | Standard Duty |
| Backset | 2-3/4 in |
| Fire Rating - Door Hardware | 3 hr |
| Number of Pins | 0 |
| Strike Dim. | 2-1/4 x 1-3/4 in |
| Number of Keys | 0 |
| Features | Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt |
| Mortise/Cylindrical | Mortise |
| Visual Indicator Message | Locked, Unlocked |
| Lockset Style | L SL1 |
| Door Thickness - Minimum | 1-3/8 in |
| Failure Mode | Fail Secure |
| Fire Rating | 3 hr |
| Strike Plate Lip Length | 1-3/16 in |
| Performance Grade | 1 |
| Hand Orientation | Non-Handed |
| UL Fire Rating | UL10C |
| Door Thickness - Maximum | 1-3/4 in |
| Latch Bolt/Dead Bolt | Dead Latch |
| Application | Commercial |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| Knob/Handle Material | Brass, Cast Stainless Steel |
| Includes Core | Core Not Included |
| Strike Plate Width | 1-1/4 in |
| Lockset Type | Mechanical |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Ligature-Resistant | Ligature-Resistant |
| Locking/Unlocking Access - Inside | Not Lockable |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
