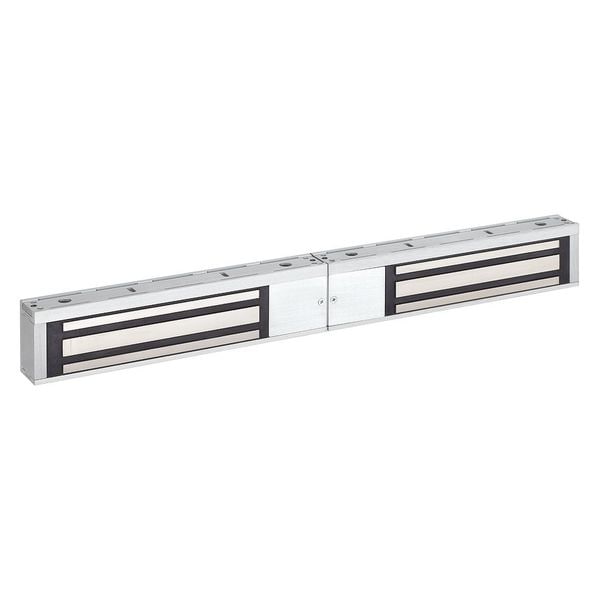

Electromagnetic Lock, 1500lb., M490 Series
| Item | Electromagnetic Lock |
|---|---|
| Finish | Anodized |
| Type | Surface Mount |
| Input Voltage | 12/24V DC |
| For Use With | High Security double Lock Applications |
| Material | Steel |
| Includes | Door Position Switch, Magnetic Bond Sensor (MBS), Relocking Time Delay (RTD) |
| Opening Action | Electromagnetic |
| Options Included | Dual Voltage |
| Series | M490 |
| Features | Connects to Most Access Control Systems, Fail Safe Operation |
| Armature Length (In.) | 10-1/2 |
| Strike Plate Depth (In.) | 1/2 |
| Amp Draw @ 24V | 0.7A/24V DC |
| Lock Body Depth (In.) | 1-3/4 |
| Standards | ANSI/BHMA A156.23 Grade 1, CSFM, cUL Listed, UL 1034, UL 294 |
| Projection from Wall (In.) | 1-3/4 |
| Lock Body Length (In.) | 25-1/16 |
| Strike Plate Length (In.) | 10-1/2 |
| Lock Body Width (In.) | 3 |
| Mfr. Series | M490 |
| Strike Plate Width (In.) | 2-5/8 |
| Armature Depth (In.) | 1/2 |
| Total Projection (In.) | 1-3/4 |
| Release Delay | Instantaneous |
| Armature Width (In.) | 2-5/8 |
| Package Quantity | 1 |
| Amp Draw @ 12V | 1.3A/12V DC |
| Holding Force (Lb.) | 1,500 |
| Lock Body Width | 3 in |
| Armature Width | 2-5/8 in |
| Lock Body Depth | 1-3/4 in |
| Strike Plate Width | 2-5/8 in |
| Armature Length | 10-1/2 in |
| Current @ 24V | 0.7 A |
| Overall Width | 1-3/4 in |
| Current @ 12V | 1.3 A |
| Strike Plate Height | 1/2 in |
| Overall Length | 25-1/16 in |
| Includes Hardware | Hardware Included |
| Overall Height | 3 in |
| UL Fire Rating | UL10C |
| Projection | 1-3/4 in |
| Holding Force - Maximum | 1,500 lb |
| Country of Origin (subject to change) | Mexico |
