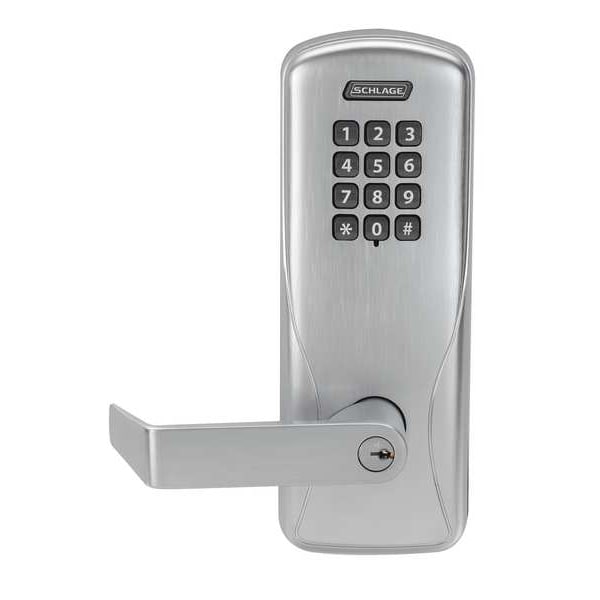

Electronic Lock, Satin Chrome, 12 Button
| Item | Electronic Keyless Lock |
|---|---|
| Handle Type | Lever |
| Function | Office |
| Key Override Options | Schlage 6 Pin Everest 29 S123 Keyway |
| Hand | Field Reversible |
| Finish | Satin Chrome |
| Door Thickness | 1-3/4 in |
| Keypad | Button |
| Backset | 2 3/4 in |
| Electrical/Mechanical | Electrical |
| Product Type | Electronic Keyless Lock |
| Lockset Function | Office/Classroom |
| Latch Length | 3/4 in |
| Outside Width | 3-1/2 in |
| Case Material | Metal |
| Grade | 1 |
| Weather Resistant | Yes |
| Max. User Codes | 5,000 |
| Series | CO100 |
| Event Audit Trail | Up to 5,000 |
| Latch Front Size | 1-1/4 in x 2 1/4 in |
| Inside Width | 3-7/16 in |
| Timed Entry Allowance | 1 to 120 sec |
| Outside Height | 9.46 in |
| Battery Life | Up to 2 yr |
| Includes | (4) AA Batteries |
| Inside Height | 10-1/8 in |
| Standards | ANSI/BHMA A156.25, FCC Part 15, FL124001, FL133561, FL144821, FL15921, FL39052, FL46131, TDI DR-4641, TDI DR-4651, UL 294, ULC S319 |
| Lock Material | Metal |
| Operating Temp. Range | -31 to 151 deg F |
| Power Source | (4) AA Batteries |
| Mounting Style | Cylindrical |
| Number of Keys | 2 |
| Access Method | Keypad |
| Inside Depth | 2-15/16 in |
| ADA Compliant | Yes |
| Voltage | 4 to 7 V DC |
| Fire Rating | 3 hr |
| Type | Cylindrical |
| Latch Front Width | 1-1/4 in |
| Lockset Handle Type | Lever |
| Strike Base Height | 4-7/8 in |
| Temperature - Minimum | 32 deg F |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Overall Height | 9-7/16 in |
| Hand Orientation | Non-Handed |
| Overall Depth | 3-11/16 in |
| UL Fire Rating | UL10C |
| Strike Base Width | 1-1/4 in |
| Lockset Type | Electrical |
| Bolt Throw | 1/2 in |
| Cylinder Core Type | Conventional Core Cylinder |
| Door Thickness - Maximum | 1-3/4 in |
| Includes Hardware | Hardware Included |
| Lockset Material | Metal |
| User Codes - Maximum | 500 |
| Locking/Unlocking Access - Outside | Keyway |
| Operation Type | Push Button |
| Event Audit Trails | 5,000 |
| Overall Width | 3-7/16 in |
| ANSI Grade | 1 |
| Temperature - Maximum | 120 deg F |
| Compatible Brand | Schlage |
| Latch Front Length | 2-1/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
