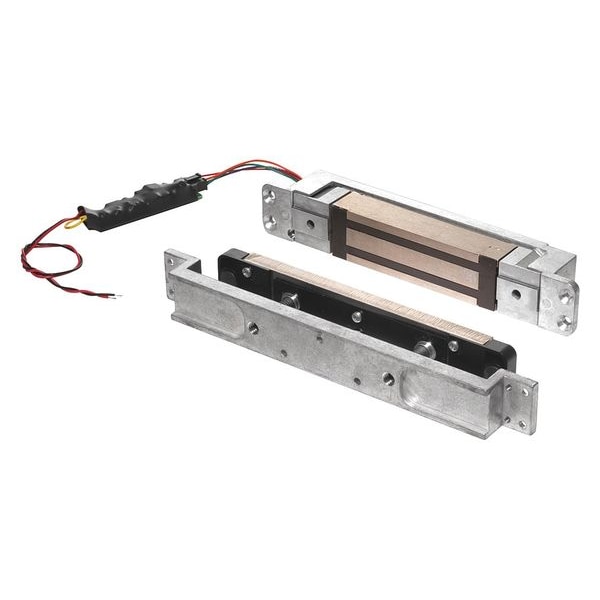

Mortise Shear Maglock
| Item | Electromagnetic Lock |
|---|---|
| Input Voltage | 12/24V DC |
| Standards | ANSI/BHMA 156.23, CSFM, cUL Listed |
| Features | Connects to Most Access Control Systems, Optional Door Position Switch and Magnetic Bond Sensor |
| Armature Length | 8-3/8 in |
| Lock Body Depth | 1-1/2 in |
| Lock Body Width | 9-13/16 in |
| Armature Width | 1-3/8 in |
| UL Fire Rating | UL10C |
| Opening Action | Electromagnetic |
| Current @ 24V | 0.45 A |
| Holding Force - Maximum | 3,000 lb |
| Current @ 12V | 0.9 A |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
