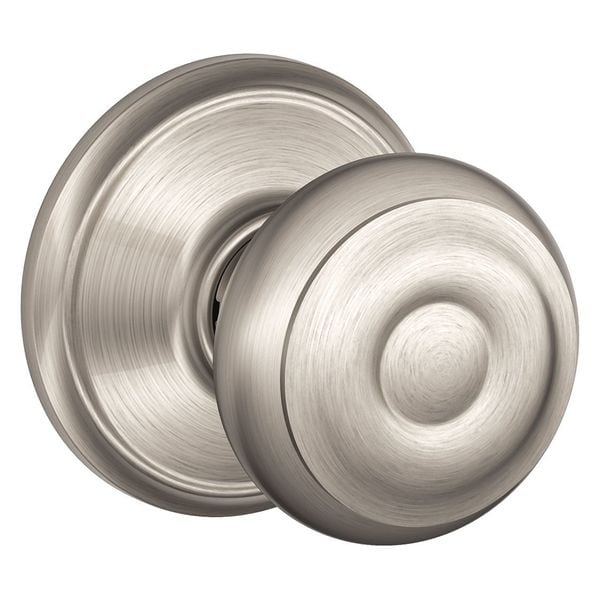

Knob Lockset, Mechanical, Passage, Grd. 1
| Mortise / Cylindrical | Cylindrical |
|---|---|
| Lockset Function | Passage |
| Lockset Grade | 2 |
| Lockset Handle Type | Knob |
| Lockset Finish | Satin Nickel |
| Required Door Thickness | 1-3/8 in and 1-3/4 in |
| Standards | ANSI/BHMA A156.2-2011, ANSI/BHMA A156.39-2015, UL Listed |
| ADA Compliant | No |
| Lockset Fire Rating | Not Rated |
| Style | F Georgian |
| Strike Dim. | 1-5/8 in x 2-1/4 in |
| Series | F |
| Electrical/Mechanical | Mechanical |
| Backset | 2 3/8 in |
| Item | Door Lockset |
| Ligature Resistant | No |
| Strike Type | Full Lip, Round Corner |
| Includes | Latch, Strike |
| For Use With | Residential/Light Commercial Applications |
| Features | Lifetime Finish and Mechanical Guarantee (Oil-Rubbed Bronze is Only a Mechanical Guarantee), Self-Aligning Screw Holes, Universal Latch |
| Voltage | Not Applicable |
| Application | Multiple Family Residential |
| Mortise/Cylindrical | Cylindrical |
| ANSI Grade | 2 |
| Locking/Unlocking Access - Inside | Not Lockable |
| Lockset Style | Georgian |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Includes Hardware | Hardware Included |
| Latch Bolt/Dead Bolt | Spring Latch |
| Fire Rating | 3 hr |
| Strike Plate Height | 2-1/4 in |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1 3/8 in |
| Hand Orientation | Non-Handed |
| Lockset Function ANSI Code | F75 |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Mechanical |
| Strike Plate Width | 1-5/8 in |
| Locking/Unlocking Access - Outside | Not Lockable |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
