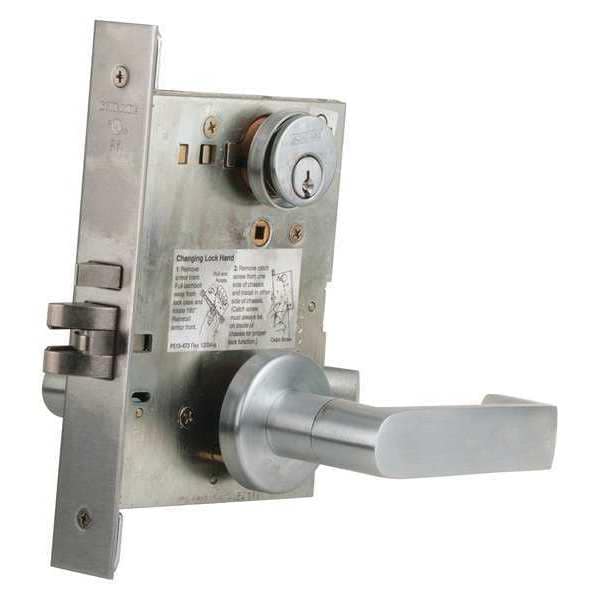

Lever Lockset, Mechanical, Entrance, Grd. 1
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| Lockset Function | Entrance |
| Lockset Grade | Grade 1 |
| Style | L 06A |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Everest C123 |
| Key Type | Keyed Different |
| Location Type | Commercial |
| Series | L |
| Mortise/Cylindrical | Mortise |
| Item | Door Lockset |
| Ligature Resistant | No |
| Number of Keys | 2 |
| Includes | Dust Box |
| Lockset Fire Rating | 3 hr |
| Standards | ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437 |
| Backset | 2-3/4 in |
| Key Material | Nickel Silver |
| Strike Type | Curved Lip |
| ADA Compliant | No |
| Features | Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt |
| Fire Rated | 3 hr. |
| Finish | Satin Chrome |
| Grade | 1 |
| Keying | Keyed Different |
| Voltage | Not Applicable |
| Type | Rose |
| Cylinder Core Type | Conventional Core Cylinder |
| Visual Indicator Message | Locked, Unlocked |
| Material | Brass Steel Zinc |
| Case Material | Brass, Steel, Zinc |
| For Door Thickness | 1-3/4" |
| Function | Entrance, Office |
| Handle Type | Lever |
| Pins | 6 |
| Strike | Square Corner |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Application | Commercial |
| Strike Plate Height | 4-7/8 in |
| ANSI Grade | 1 |
| Lockset Style | L Rhodes |
| UL Fire Rating | UL10C |
| Ligature-Resistant | Not Ligature-Resistant |
| Hand Orientation | Non-Handed |
| Failure Mode | Fail Secure |
| Lockset Function ANSI Code | F04 |
| Door Thickness - Minimum | 1-3/8 in |
| Performance Grade | 1 |
| Strike Plate Lip Length | 1-3/16 in |
| Strike Plate Width | 1-1/4 in |
| Fire Rating | 3 hr |
| Lockset Type | Mechanical |
| Knob/Handle Material | Brass, Cast Stainless Steel |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
