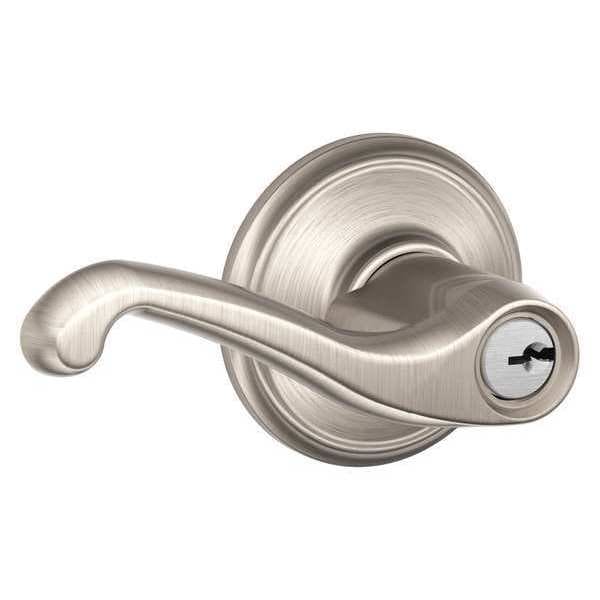

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | F Flair |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Nickel |
| Keyway Type | Tumbler C |
| Key Type | Keyed Different |
| Includes | Keys |
| Handle Material | Brass, Steel, Zinc |
| Number of Keys | 2 |
| Standards | ANSI/BHMA A156.2-2011, ANSI/BHMA A156.39-2015, UL Listed |
| ADA Compliant | No |
| Lockset Performance Strength | Light Duty |
| Series | F |
| Lockset Fire Rating | 3 hr |
| Item | Door Lockset |
| Number of Pins | 5 |
| Strike Type | Full Lip, Round Corner |
| Mortise/Cylindrical | Cylindrical |
| Backset | 2-3/8 in |
| Ligature Resistant | No |
| Key Material | Nickel Silver |
| Location Type | Residential |
| Finish | Satin Nickel |
| Features | Lock and Finish Backed By Limited Lifetime Warranty (Oil-Rubbed Bronze Exempt from Finish Guarantee), Self-Aligning Screw Holes, Universal Latch |
| Fire Rated | 3 hr. |
| Keying | Keyed Different |
| Grade | 2 |
| Voltage | Not Applicable |
| Type | Medium Duty |
| Visual Indicator Message | No Message |
| Material | Brass Steel Zinc |
| For Door Thickness | 1-3/8 - 2" |
| Pins | 5 |
| Function | Entry |
| Strike | Square Corner, T-strike |
| Application | Multiple Family Residential |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Function ANSI Code | F81 |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Style | Flair |
| Latch Bolt/Dead Bolt | Dead Latch |
| ANSI Grade | 2 |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Knob/Handle Material | Brass, Steel, Zinc |
| Fire Rating | 3 hr |
| Visual Indicator Location | Not Applicable |
| Performance Grade | 3 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
