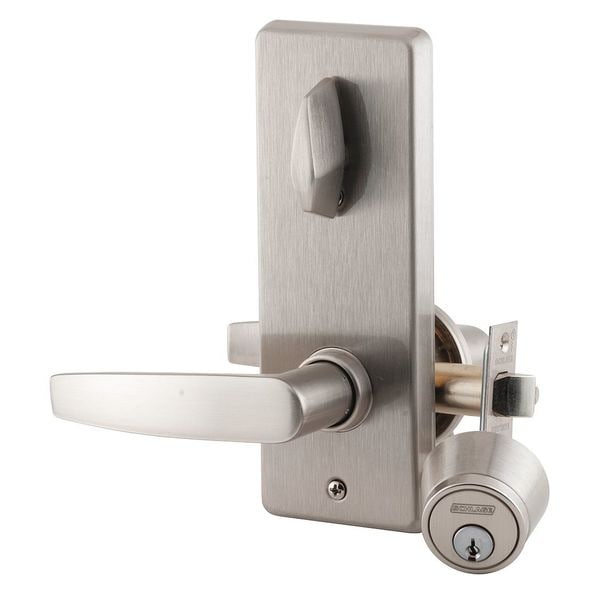

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | S210PD Jupiter |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Nickel |
| Keyway Type | Schlage SC4 |
| Key Type | Keyed Different |
| Strike Dim. | 1-1/8 in x 2-3/4 in |
| Backset | 2-3/8 in |
| ADA Compliant | Yes |
| Number of Pins | 6 |
| For Use With | Hollow Metal, Wood Doors |
| Cylinder Core Type | Fixed |
| Key Material | Brass |
| Lockset Performance Strength | Heavy Duty |
| Features | Free Spinning Cylinder Collar, Removable Security Shield, Anti-Saw Pin |
| Mortise/Cylindrical | Cylindrical |
| Standards | BAA/TAA, California Fire Code, Complies with ICC A117.1 Accessible and Usable Buildings and Facilities, CAN/ULC S104 |
| Includes | Hardware |
| Handle Material | Zinc |
| Item | Door Lockset |
| Location Type | Commercial, Industrial |
| Strike Type | T-Strike |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 2 |
| Series | S210PD |
| Ligature Resistant | No |
| Finish | Satin Nickel |
| Grade | 2 |
| Fire Rated | 3 hr. |
| Keying | Keyed Different |
| Voltage | Not Applicable |
| Visual Indicator Message | No Message |
| Function | Entry |
| Knob/Handle Material | Cast Zinc |
| Fire Rating | 3 hr |
| Includes Hardware | Hardware Included |
| Strike Plate Height | 2-3/4 in |
| Visual Indicator Location | Not Applicable |
| Lockset Function ANSI Code | F95 |
| Strike Plate Lip Length | 1-1/8 in |
| UL Fire Rating | UL10C |
| Ligature-Resistant | Not Ligature-Resistant |
| Application | Commercial |
| Door Thickness - Maximum | 2 in |
| Lockset Style | S210 |
| Strike Plate Width | 1-1/8 in |
| Lockset Type | Mechanical |
| Door Thickness - Minimum | 1-3/8 in |
| Latch Bolt/Dead Bolt | Latch Bolt, Dead Latch |
| ANSI Grade | 2 |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Performance Grade | 2 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
