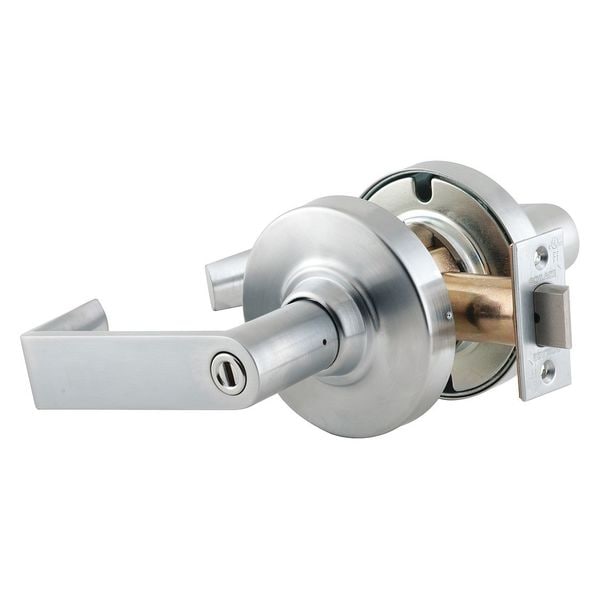

Lever Lockset, Mechanical, Privacy, Grd. 1
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | ND |
| Required Door Thickness | 1-5/8 to 2-1/8 in |
| Backset | 2 3/4 in |
| Includes | Hardware |
| Key Material | Not Applicable |
| Lockset Grade | 1 |
| Mortise / Cylindrical | Cylindrical |
| Keyway Type | None |
| Handle Material | Brass, Steel, Zinc |
| Style | ND Rhodes |
| Standards | ANSI/BHMA ANSI A156.2-2017, ASTM E330, BAA/TAA, California Fire Code, E1886, E1996, FF-H-106C Series 161, ICC Complies with ICC A117.1-2017, Miami Dade (TAS 201, 202, 203), TDI (ASTM E330, E1886, E1996), CAN/ULC S104, UL 437 |
| Lockset Finish | Satin Chrome |
| Strike Type | Curved Lip |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Key Type | Not Keyed |
| Lockset Performance Strength | Heavy Duty |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Lockset Fire Rating | 3 hr |
| Features | Snap-On Rose |
| Fire Rated | 3 hr. |
| Keying | Unkeyed |
| Visual Indicator Message | No Message |
| Strike | Corner, No Box |
| Material | Brass Steel Zinc |
| For Door Thickness | 1-5/8 to 2-1/8" |
| Voltage | Not Applicable |
| Type | Heavy Duty |
| Function | Privacy |
| Includes Hardware | Hardware Included |
| UL Fire Rating | UL10C |
| Latch Bolt/Dead Bolt | Spring Latch |
| Door Thickness - Maximum | 2-1/8 in |
| Lockset Function ANSI Code | F76 |
| Performance Grade | 1 |
| Fire Rating | 3 hr |
| Lockset Style | ND Rhodes |
| Lockset Type | Mechanical |
| Visual Indicator Location | Not Applicable |
| Application | Commercial |
| Strike Plate Width | 1-1/4 in |
| ANSI Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Height | 4-7/8 in |
| Strike Plate Lip Length | 1-3/16 in |
| Hand Orientation | Non-Handed |
| Knob/Handle Material | Cast Zinc |
| Door Thickness - Minimum | 1-5/8 in |
| Locking/Unlocking Access - Inside | Push Button |
| Locking/Unlocking Access - Outside | Coin Turn |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
