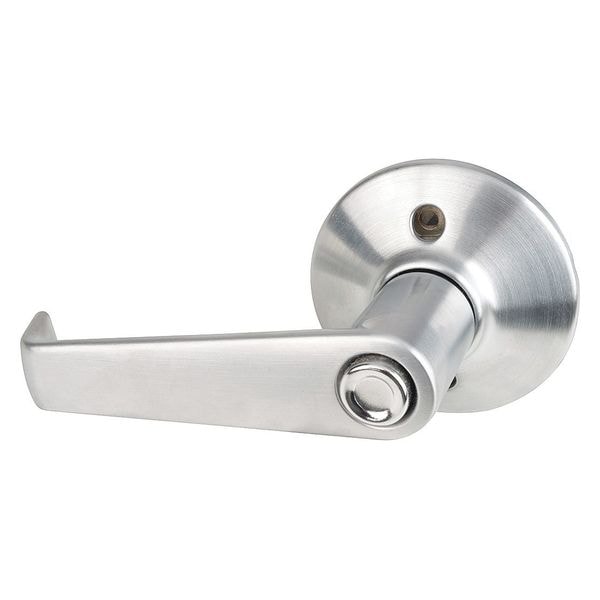

Lever Lockset, Mechanical, Privacy, Grd. 2
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Residential |
| Electrical/Mechanical | Mechanical |
| Grade | 2 |
| Finish | Satin Chrome |
| Series | F |
| Required Door Thickness | 1-3/8 to 1-3/4 in |
| Backset | 2 3/8 in |
| Includes | Pin Key |
| Handle Material | Brass, Steel, Zinc |
| Key Type | Not Keyed |
| Mortise / Cylindrical | Cylindrical |
| Key Material | Not Applicable |
| Keyway Type | None |
| Lockset Fire Rating | 3 hr |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Standards | ANSI/BHMA A156.2-2011, ANSI/BHMA A156.39-2015, UL Listed |
| Lockset Performance Strength | Light Duty |
| Lockset Finish | Satin Chrome |
| Mortise/Cylindrical | Cylindrical |
| Style | F Elan |
| Lockset Grade | 2 |
| Strike Type | Full Lip, Round Corner |
| Lockset Handle Type | Lever |
| Features | Lock and Finish Backed By Limited Lifetime Warranty (Oil-Rubbed Bronze Exempt from Finish Guarantee), Self-Aligning Screw Holes, Universal Latch |
| Fire Rated | 3 hr. |
| Keying | Unkeyed |
| Visual Indicator Message | No Message |
| Material | Brass Steel Zinc |
| Strike | Corner, No Box, Full Lip |
| Function | Privacy |
| Type | Medium Duty |
| Voltage | Not Applicable |
| Pins | 5 |
| For Door Thickness | 1-3/8 - 1-3/4" |
| Fire Rating | 3 hr |
| Lockset Style | Elan |
| ANSI Grade | 2 |
| Application | Multiple Family Residential |
| Visual Indicator Location | Not Applicable |
| Door Thickness - Minimum | 1-3/8 in |
| Knob/Handle Material | Brass, Steel, Zinc |
| Lockset Function ANSI Code | F76 |
| Door Thickness - Maximum | 1-3/4 in |
| Performance Grade | 3 |
| Lockset Type | Mechanical |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Hand Orientation | Non-Handed |
| Ligature-Resistant | Not Ligature-Resistant |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
