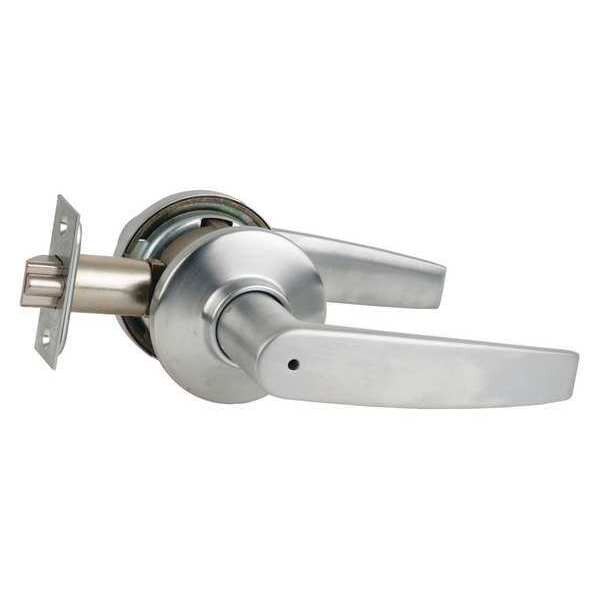

Lever Lockset, Mechanical, Privacy, Grd. 2
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 2 |
| Finish | Satin Chrome |
| Series | S |
| Required Door Thickness | 1-3/8 to 1-7/8 in |
| Backset | 2 3/8 in |
| Strike Dim. | 1-1/4 in x 2-3/4 in |
| Includes | Strike |
| Handle Material | Brass |
| Mortise/Cylindrical | Cylindrical |
| Standards | ANSI/BHMA A156.2-2017, BAA, ICC A117.1, UL Listed |
| Mortise / Cylindrical | Cylindrical |
| Number of Keys | 0 |
| Lockset Finish | Satin Chrome |
| Keyway Type | None |
| Style | S Jupiter |
| Lockset Grade | 2 |
| Number of Pins | 0 |
| Lockset Fire Rating | Not Rated |
| Strike Type | T-Strike |
| Key Type | Not Keyed |
| For Use With | various Door Types |
| Cylinder Core Type | Not Applicable |
| Lockset Handle Type | Lever |
| Features | Adjustable Backset |
| Ligature Resistant | No |
| Lockset Performance Strength | Medium Duty |
| ADA Compliant | Yes |
| Fire Rated | Not Rated |
| Key Material | Not Applicable |
| Keying | Unkeyed |
| Strike | Includes |
| Visual Indicator Message | No Message |
| Voltage | Not Applicable |
| Latch Bolt/Dead Bolt | Dead Latch |
| Performance Grade | 2 |
| Strike Plate Height | 2-3/4 in |
| Fire Rating | 3 hr |
| Lockset Function ANSI Code | F76 |
| Strike Plate Width | 1-1/8 in |
| Strike Plate Lip Length | 1-1/8 in |
| UL Fire Rating | UL10C |
| Lockset Type | Mechanical |
| Includes Core | Core Not Included |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 1-7/8 in |
| Knob/Handle Material | Brass |
| Locking/Unlocking Access - Inside | Push Button |
| ANSI Grade | 2 |
| Hand Orientation | Non-Handed |
| Visual Indicator Location | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Application | Commercial |
| Lockset Style | S Jupiter |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
