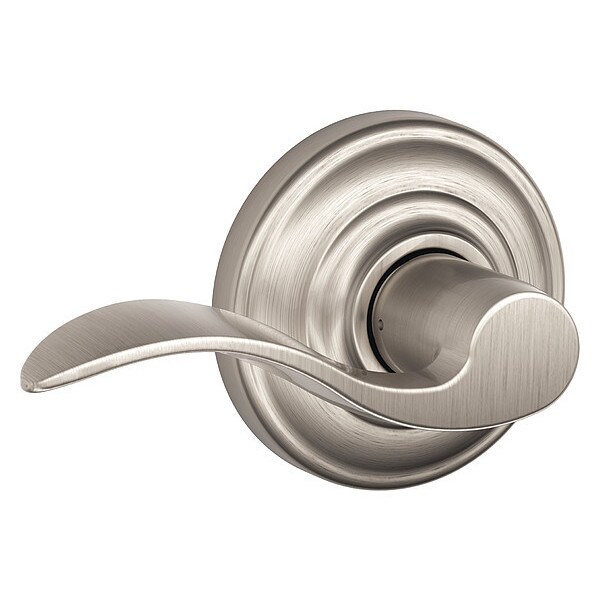

Door Lever Lockset, Satin Nickel, Passage
| Backset | 2-3/4 in, 2-3/8 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | Residential/Light Commercial Applications |
| Includes | Hardware |
| Key Type | Not Keyed |
| Keyway Type | None |
| Location Type | Residential, Multi-Family |
| Lockset Function | Passage |
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Cylindrical |
| Number of Pins | 0 |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Series | F10 |
| Style | Accent/Andover |
| Voltage | Not Applicable |
| Handle Material | Brass |
| Lockset Fire Rating | Not Rated |
| Strike Type | Full Lip, Round Corner |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Mortise / Cylindrical | Cylindrical |
| Standards | ANSI/BHMA A156.2-2011 |
| Features | Left Hand |
| Lockset Finish | Satin Nickel |
| Key Material | Not Applicable |
| Lockset Performance Strength | Standard Duty |
| Item | Door Lockset |
| Ligature Resistant | No |
| Number of Keys | 0 |
| ADA Compliant | No |
| Application | Residential |
| Visual Indicator Message | No Message |
| Lockset Type | Mechanical |
| Hand Orientation | Non-Handed |
| Performance Grade | 2 |
| Locking/Unlocking Access - Outside | Not Lockable |
| Locking/Unlocking Access - Inside | Not Lockable |
| Knob/Handle Material | Brass |
| ANSI Grade | 2 |
| Lockset Function ANSI Code | F75 |
| Strike Plate Width | 1-1/4 in |
| Visual Indicator Location | Not Applicable |
| Fire Rating | Not Rated |
| Includes Hardware | Hardware Included |
| Lockset Style | Accent, Andover |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Ligature-Resistant | Not Ligature-Resistant |
| Strike Plate Height | 4-7/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
