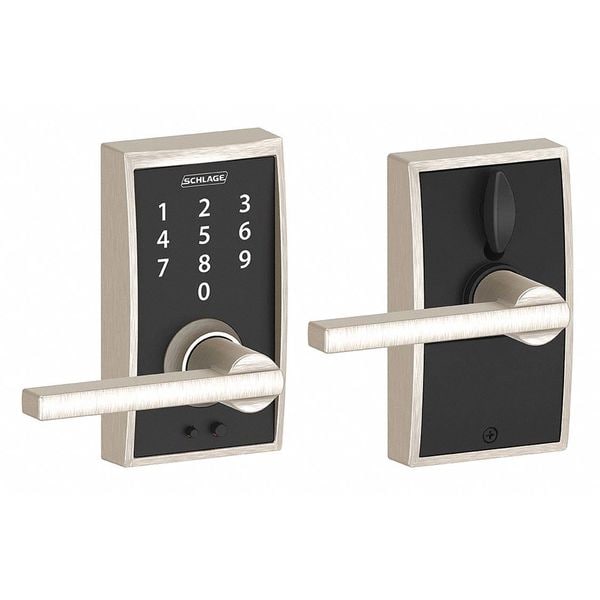

Electronic Lock, Lever, Satin Nickel
| Item | Electronic Keyless Lock |
|---|---|
| Handle Type | Lever |
| Function | Entry |
| Key Override Options | Schlage "C" 6 Pin Keyway |
| Hand | Field Reversible |
| Finish | Satin Nickel |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Backset | 2 3/4 in, 2 3/8 in |
| Electrical/Mechanical | Electrical |
| Product Type | Electronic Keyless Lock |
| Key Type | Not Keyed |
| Lockset Function | Entrance |
| Case Material | Metal |
| Grade | 2 |
| Weather Resistant | Yes |
| Max. User Codes | 19 |
| Series | FE695 |
| Access Method | Touch Screen Keypad |
| Location Type | Commercial, Multiple Family Residential, Residential |
| Fire Rating | Not Rated |
| Power Source | 9V Battery |
| Lockset Finish | Satin Nickel |
| Lockset Fire Rating | Not Rated |
| Max. Proximity Range | At Lock |
| Battery Life | 1 to 2 yr |
| Lock Material | Zinc Alloy |
| Number of Keys | 2 |
| For Use With | Various Door Types |
| Standards | ANSI/BHMA A156.2-2011 Grade 2, ANSI/BHMA A156.39-2015 Grade AAA |
| IP Rating | Not Rated |
| Network Interface | None |
| Event Audit Trail | No |
| ADA Compliant | No |
| Ligature Resistant | No |
| Includes | Mounting Hardware |
| Keypad Material | Zinc |
| Timed Entry Allowance | Free Egress At All Times |
| Mounting Style | Cylindrical |
| Voltage | 9 V |
| Strike Type | Deadbolt |
| Overall Height | 7-7/8 in |
| Event Audit Trails | Not Applicable |
| Overall Width | 5-3/8 in |
| Bolt Throw | 1/2 in |
| Temperature - Maximum | 120 deg F |
| Lockset Type | Electrical, Mechanical |
| Door Thickness - Minimum | 1 3/8 in |
| Lockset Handle Type | Lever |
| Temperature - Minimum | 14 deg F |
| ANSI Grade | 2 |
| Strike Base Height | 2-1/4 in |
| UL Fire Rating | Not Rated |
| User Codes - Maximum | 19 |
| Door Thickness - Maximum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Strike Base Width | 1-5/8 in |
| Lockset Material | Metal |
| Operation Type | Push Button |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| Overall Depth | 3 in |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
