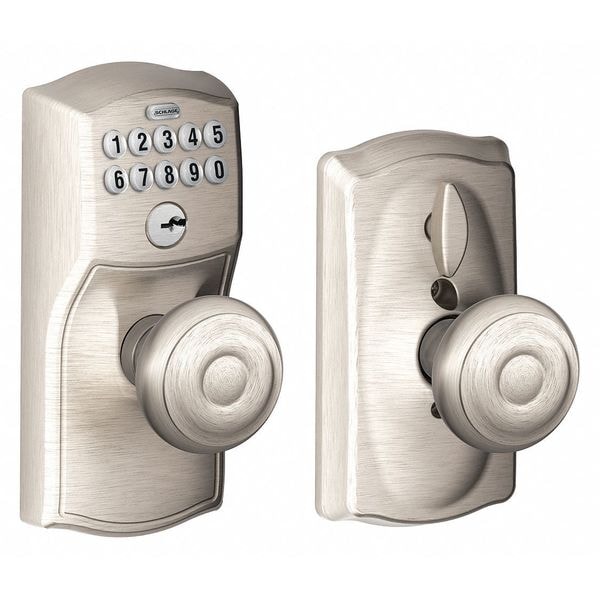

Push Button Lockset, Knob, Satin Nickel
| Item | Keypad Knob |
|---|---|
| Lockset Handle Type | Knob |
| Series | F |
| Electrical/Mechanical | Mechanical |
| Backset | 2 3/4 in, 2 3/8 in |
| Inside Depth | 5-1/8 in |
| Grade | 2 |
| Finish | Satin Nickel |
| Inside Height | 5-9/16 in |
| Outside Height | 6 in |
| Key Override Options | None |
| Function | Entry |
| Outside Width | 6-27/32 in |
| Fire Rated | No |
| Keypad | 10 Button, Vandal Resistant |
| Inside Width | 6-7/8 in |
| Door Thickness | 1-3/8 in to 1-3/4 in |
| Handle Type | Knob |
| Includes | Camelot Trim |
| Case Material | Zinc |
| Hand | Nonhanded |
| Max. User Codes | 1 |
| Weather Resistant | Yes |
| ADA Compliant | No |
| Outside Depth | 5-1/8 in |
| Latch Length | 1/2 in |
| Standards | ANSI/BHMA A156.2-2011 Grade 2 |
| Lockset Function | Entrance |
| Product Type | Keypad Knob |
| Overall Height | 6-7/8 in |
| Lockset Type | Mechanical |
| Overall Width | 6-13/16 in |
| Number of Keypad Buttons | 10 |
| Hand Orientation | Non-Handed |
| Door Thickness - Minimum | 1 3/8 in |
| Operation Type | Push Button |
| Overall Depth | 3 in |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Satin Nickel-Plated, Clear Coated |
| ANSI Grade | 2 |
| User Codes - Maximum | 19 |
| Door Thickness - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
