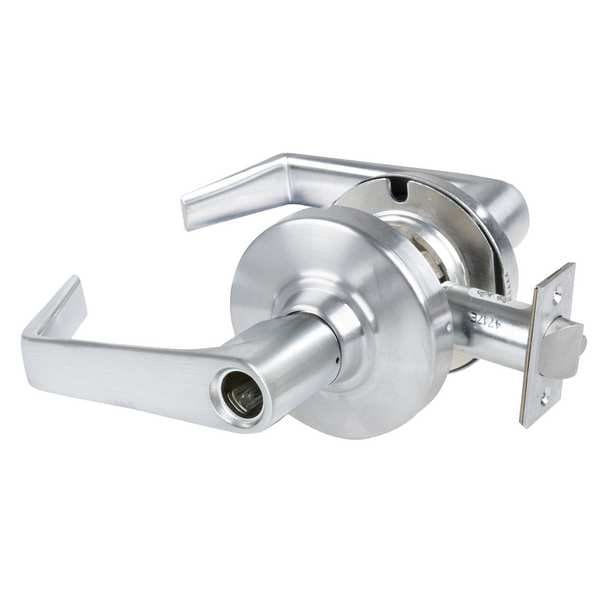

Sat Lever Storeroom Lock, Satin Chrome
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Lockset Function | Storeroom |
| Style | Lever |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Keyway Type | Not Applicable |
| Key Type | Not Applicable |
| Lockset Performance Strength | Standard Duty |
| Location Type | Commercial |
| Handle Material | Steel |
| ADA Compliant | Yes |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Features | Non Handed |
| Finish | Satin Chrome |
| Number of Pins | 6 |
| Strike Type | Curved Lip |
| Key Material | Not Applicable |
| Includes | Not Applicable |
| Item | Door Lockset |
| Ligature Resistant | No |
| Grade | 2 |
| Voltage | Not Applicable |
| Standards | ANSI A156.2-2017, Florida Building Commission (ASTM E330, E1886, E1996), ICC A117.1-2017, TDI (ASTM E330, E1886, E1996), UL and cUL Listed |
| Number of Keys | 0 |
| Fire Rated | 3 hr |
| Backset | 2-3/4 in |
| Keying | Unkeyed |
| Application | Commercial |
| Strike Plate Width | 1-1/4 in |
| Visual Indicator Message | Not Applicable |
| Visual Indicator Location | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Maximum | 1-3/4 in |
| Knob/Handle Material | Steel |
| Lockset Function ANSI Code | F86 |
| Hand Orientation | Non-Handed |
| Fire Rating | 3 hr |
| Performance Grade | 2 |
| ANSI Grade | 1 |
| Lockset Type | Mechanical |
| UL Fire Rating | UL10C |
| Strike Plate Lip Length | 1-3/16 in |
| Locking/Unlocking Access - Outside | Keyway |
| Door Thickness - Minimum | 1-3/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
