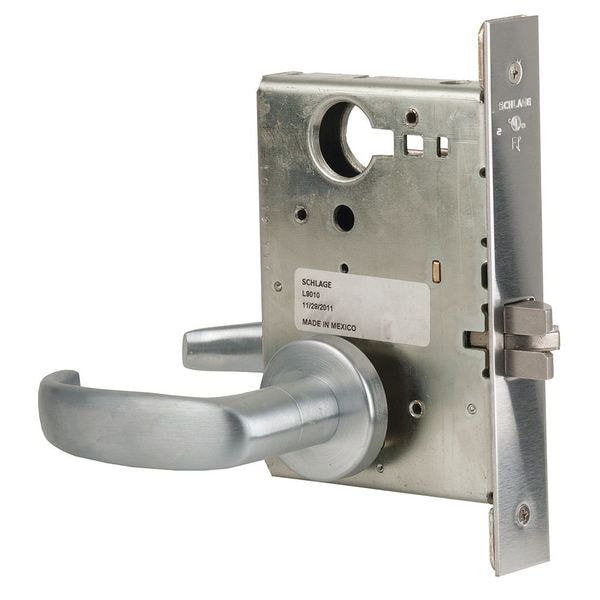

Schlage Mortise Passage Lockset, Lever, Passage
| Item | Door Lockset |
|---|---|
| Strike Type | Curved Lip |
| Number of Keys | 0 |
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Mortise |
| ADA Compliant | No |
| Lockset Fire Rating | Not Rated |
| Mortise/Cylindrical | Mortise |
| Lockset Function | Passage |
| Ligature Resistant | No |
| Lockset Grade | Not Graded |
| Electrical/Mechanical | Mechanical |
| Includes | Dust Box |
| Standards | ANSI/BHMA A156.13-2017, BAA/TAA, Complies with ICC A117.1, Miami-Dade NOA and Florida Building Commission Listings, Texas Department of Insurance (TDI), Title 19, California State Fire Marshal Standard), CAN/ULC S104, UL 437 |
| Voltage | Not Applicable |
| Features | Breakaway Spindle, Anti-Saw Pin In Bolt, Security Blocking Hub, Two Piece Anti-Friction Tongue in Latch Bolt |
| Backset | 2-3/4 in |
| Key Material | Not Applicable |
| Key Type | Not Keyed |
| Visual Indicator Message | Locked, Unlocked |
| Latch Bolt/Dead Bolt | Spring Latch |
| Ligature-Resistant | Not Ligature-Resistant |
| Hand Orientation | Non-Handed |
| Performance Grade | 1 |
| UL Fire Rating | UL10C |
| Door Thickness - Minimum | 1-3/8 in |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Function ANSI Code | F01 |
| Lockset Style | L Sparta |
| Fire Rating | 3 hr |
| Knob/Handle Material | Cast Stainless Steel, Forged Brass |
| Strike Plate Lip Length | 1-3/16 in |
| Failure Mode | Fail Secure |
| Strike Plate Width | 1-1/4 in |
| Strike Plate Height | 4 7/8 in |
| Locking/Unlocking Access - Outside | Not Lockable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| ANSI Grade | 1 |
| Locking/Unlocking Access - Inside | Not Lockable |
| Application | Commercial |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
