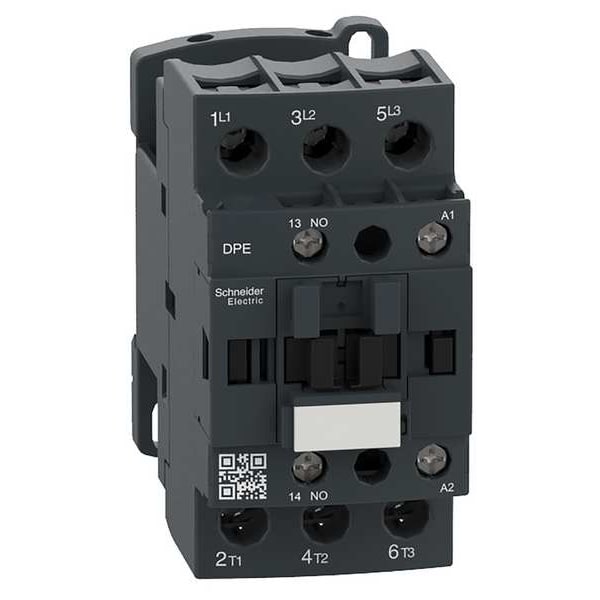

Fácil TeSys, 3 Polos, 24 V AC, 32 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 32 A |
| Full Load Amps-Resistive | 32 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | No |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 15 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Aux. Contact Configuration | 1NO |
| Enclosure NEMA Rating | 3R, 4 |
| Hz | 50/60 Hz |
| Standards | CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL Listed, UL 60947-4-1 |
| Depth | 3.62 in |
| Width | 1.77 in |
| Height | 3.35 in |
| Frame / Series / Class / Code | TeSys |
| Special Features | Overvoltage Category III; Minimum Switching Voltage 17 V Signalling Circuit; Insulation Resistance 10 MOhm Signalling Circuit |
| Application | Motor Control, Resistive Load |
| Overall Height | 3.35 in |
| Includes | Not Applicable |
| Overall Width | 1.77 in |
| Features | Without Built-In Suppressor Module |
| IP Rating | IP20 |
| Overvoltage Category | CAT III |
| Electrical Connection | Screw Clamp Terminals |
| Series | TeSys Easy |
| Environmental Attributes | Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3 |
| Thermal Amperage | 10 A (at 60°C Signalling Circuit), 40 A (at 60°C Power Circuit) |
| Tightening Torque | 1.7 Nm |
| Shock Resistance | 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open) |
| Mechanical Durability | 10 Mcycles |
| Fuse Amps | 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit) |
| Rated Voltage | 690V AC, 300V DC |
| Inrush VA | 70 VA |
| Impedance | 2 mOhm |
| Electrical Durability | 1 Mcycles (32 A, AC-3, Less than 440 V); 0.6 Mcycles (40 A, AC-1, Less than 440 V) |
| Vibration Resistance | 4 G (Contactor Closed), 2 G (Contactor Open) |
| Switching Voltage | 17 V (Signalling Circuit) |
| Insulation Resistance Range | Greater Than 10 MOhms (Signalling Circuit) |
| Non-Overlap Time | 1.5 msec |
| Mounts On | Plate, Rail |
| Impulse Withstand Voltage | 6 kV |
| Switching Current | 5 mA (Signalling Circuit) |
| Max. Operating Watts | 7.5 kW (at 220 to 230V AC 50/60 Hz), 15 kW (at 380 to 400V AC 50/60 Hz), 15 kW (at 415V AC 50/60 Hz), 15 kW (at 440V AC 50/60 Hz), 18.5 kW (at 500V AC 50/60 Hz), 18.5 kW (at 660 to 690V AC 50/60 Hz) |
| Max. Temperature | 850°C |
| Rated Insulation Volts | 600/690V |
| Signalling Circuit Frequency | 25 to 400 Hz |
| Operating Time | 12 to 22 ms (Closing), 4 to 19 ms (Opening) |
| Net Weight | 0.37 kg |
| Rated Breaking Capacity | 450 A @ 440V |
| Rated Making Capacity | 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit) |
| Working Height | Up to 6,561.68 ft |
| Control Circuit Voltage Limits | Drop-Out: 0.3 to 0.6 Uc (at 70°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60°C 50 Hz 0.85 to 1.1 Uc (at 60°C 60 Hz), 1 to 1.1 Uc (at 70°C 50/60 Hz) |
| Operating Speed | 3600 cycles per hr |
| Watts Loss | 2 to 3W |
| Hold VA | 7.5 VA (at 60 Hz 20°C), 7 VA (at 50 Hz 20°C) |
| Overall Depth | 3.62 in |
| Frequency | 50/60 Hz |
| Reversing Capability | Non-Reversing |
| Full Load Current - Inductive | 32 A |
| Embedded Surge Suppressor | No |
| Includes Auxiliary Contacts | Yes |
| Number of Normally Open Main Contacts | 3 |
| Electrical Operating Durability | 1,000,000, 600,000 |
| Contactor Style | IEC |
| Mechanical Operating Durability | 10,000,000 |
| Resistance Properties | Fire Resistant, Insulation Resistant |
| Minimum Operating Temperature | -40 deg F |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Maximum Voltage Rating | 690 V AC |
| NEMA Size | Not Applicable |
| Number of Auxillary Contacts | 1 |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Coil Voltage | 24V AC |
| Mounting Style | DIN Rail, Plate |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Operating Temperature | 140 deg F |
| NEMA Enclosure Rating | No Enclosure |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Auxiliary Contact Form | 1NO |
| Motor Power KW | 7.5 kW 220 to 230 V AC 50/60 Hz; 15 kW 380 to 400 V AC 50/60 Hz; 15 kW 415 V AC 50/60 Hz; 15 kW 440 V AC 50/60 Hz; 18.5 kW 500 V AC 50/60 Hz; 18.5 kW 660 to 690 V AC 50/60 Hz |
| Ambient Air Temperature For Operation | -40 to 140°F (-40 to 60°C) |
| Ambient Air Temperature For Storage | -76 to 176°F |
| Conventional Free Air Thermal Current | 10 A (at 140°F (60°C)) for signalling circuit; 40 A (at 140°F (60°C)) for power circuit |
| Associated Fuse Rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit |
| Mounting Support | Rail |
| Rated Operational Current | 32 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140°F (60°C)) at Less than or Equal to 440 V AC AC-1 for power circuit |
| Product Name | Easy TeSys DPE |
| Operating Altitude | 0 to 6561.68 ft (0 to 2000 m) |
| IP Degree Of Protection | IP20 front face IEC 60529 |
| Insulation Resistance | Greater than 10 MOhm for signalling circuit |
| IRMS Rated Making Capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947 |
| Auxiliary Contact Composition | 1 NO |
| Control Circuit Voltage | 24 V AC 50/60 Hz |
| Product Or Component Type | Contactor |
| Maximum Operational Voltage | Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC |
| Fire Resistance | 1562°F IEC 60695-2-1 |
| Power Dissipation Per Pole | 3.2 W AC-1; 1.25 W AC-3 |
| Poles Description | 3P |
| Maximum Operating Rate | 3600 cyc/h 140°F (60°C) |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Product Certifications | UL; CSA |
| Connections - Terminals | Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 in² (1 to 4 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 0.00 to 0.02 in² (2.5 to 10 mm²) - cable stiffness: solid without cable end |
| Rated Insulation Voltage | Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL |
| Pollution Degree | 3 |
| Maximum Horse Power Rating | 2 hp at 115 V AC 50/60 Hz for 1 phase motors; 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors |
| Utilisation Category | AC-4; AC-1; AC-3 |
| Minimum Switching Current | 5 mA (for signalling circuit) |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947 |
| Pole Contact Composition | 3 NO |
| Minimum Switching Voltage | 17 V for signalling circuit |
| Contactor Application | Resistive load |
| Heat Dissipation | 2 to 3 W 50/60 Hz |
| Control Circuit Type | AC 50/60 Hz |
| Mechanical Robustness | Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor open 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms) |
| Auxiliary Contacts Type | Mechanically linked 1 NO IEC 60947-5-1 |
| Average Impedance | 2 mOhm - Ith 40 A 50 Hz for power circuit |
| Hold-In Power Consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68°F (20°C)); 7 VA 50 Hz cos phi 0.3 (at 68°F (20°C)) |
| Inrush Power in VA | 70 VA 60 Hz cos phi 0.75 (at 68°F (20°C)); 70 VA 50 Hz cos phi 0.75 (at 68°F (20°C)) |
| Package Quantity | 1 |
