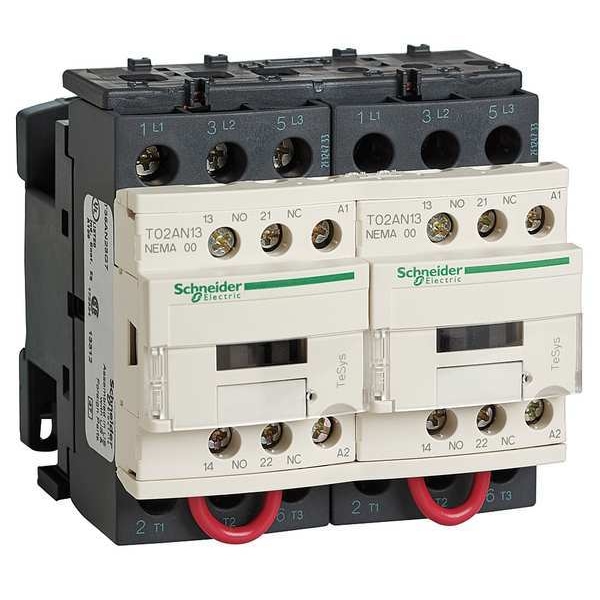

Contactador magnético reversible de 120VCA, 3 polos, 27 amperios, NEMA 1.
| Item | Magnetic Contactor |
|---|---|
| Full Load Amps | 27 A |
| Action | Reversing |
| Number of Poles | 3 |
| Coil Volts | 120 V AC |
| NEMA Contactor Size | 1 |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 3 hp |
| Height | 3.9 in |
| HP @ 3 Phase - 208V | 7 1/2 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Depth | 3.62 in |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 480V | 10 hp |
| Enclosure NEMA Rating | No Enclosure |
| NEMA Size | 1 |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | CSA, UL Listed |
| Hz | 50/60 |
| Frame / Series / Class / Code | TeSys |
| Series | TeSys N |
| Phase | Three |
| Overall Depth | 3.62 in |
| NEMA Enclosure Material | Not Applicable |
| Coil Voltage | 120V AC |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Contactor Style | NEMA |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Reversing Capability | Reversing |
| Overall Height | 3.71 in |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Full Load Current - Inductive | 27 A |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Includes Auxiliary Contacts | Yes |
| Number of Auxillary Contacts | 2 |
| Maximum Voltage Rating | 600 V AC |
| Overall Width | 3.53 in |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Electrical Connection | Screw Clamp Terminals |
| Line Rated Current | 27 A |
| [Ue] Rated Operational Voltage | 600 V AC |
| Nema Degree Of Protection | not rated (open device) |
| Contactor Application | reversing |
| Product Certifications | UL Listed || CSA |
| [Uc] Control Circuit Voltage | 120 V AC |
| Poles Description | 3P |
| Maximum Horse Power Rating | 7.5 hp 200 V AC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC |
| Control Circuit | common control circuit |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Product Or Component Type | Contactor |
| Package Quantity | 1 |
