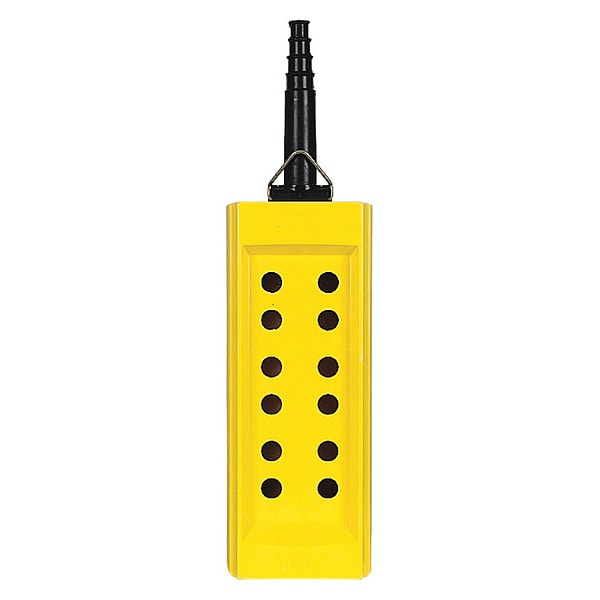

12 filas de 6 botones colgantes sin botón de encendido incluido.
| Color | Yellow |
|---|---|
| Item | Pendant Enclosure |
| Material | Plastic |
| IP Rating | IP65 |
| Includes | Cap Sleeve |
| Standards | CSA, EN/IEC, IP65, RoHS |
| Height | 4-1/4 in |
| Cable Entry | 0.39 in to 0.87 in |
| Width | 6.38 in |
| Depth | 25.98 in |
| Hole Size | 40 mm |
| Enclosure Material | glass reinforced polyester |
| Overall Width | 6-3/8 in |
| Overall Height | 4-1/4 in |
| Cable Entry Type | Rubber Sleeve |
| Compatible Panel Cutout Diameter | 22 mm |
| Compatible with Series | XAC |
| Overall Depth | 26 in |
| Compatible with Brand | Schneider |
| Open Cable Entry Size | Not Applicable |
| Rubber Sleeve Cable Entry Size - Minimum | 0.39 in |
| Rubber Sleeve Cable Entry Size - Maximum | 0.87 in |
| Vertical Operator Cut-Out Centre | 40 mm |
| Control Station Colour | yellow |
| Control Station Type | double insulated |
| Product Certifications | CSA type 4 |
| Electrical Circuit Type | power circuit || control circuit |
| Number Of Cut-Out | 12 cut-outs in 2 rows |
| Guard Rail | Without |
| Ambient Air Temperature For Operation | -25-70°C |
| Ik Degree Of Protection | IK08 EN 50102 |
| Device Short Name | XACB |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Ambient Air Temperature For Storage | -40-70°C |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | empty enclosure |
| Protective Treatment | TH |
| Overvoltage Category | class II IEC 61140 |
| Mechanical Durability | 1,000,000 cycle |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Product Or Component Type | control station |
| Package Quantity | 1 |
