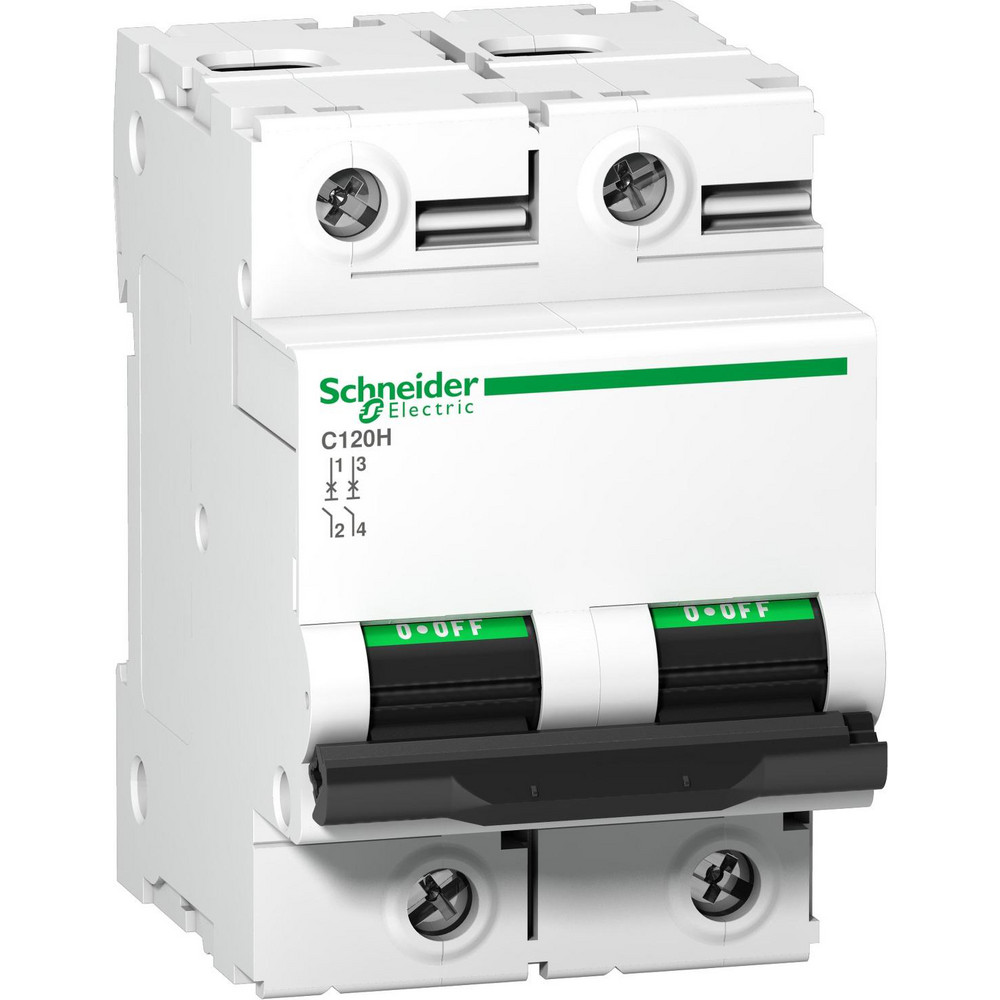

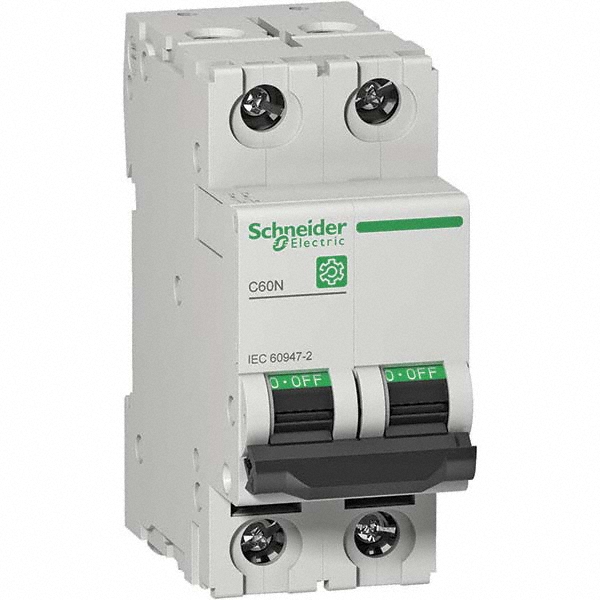

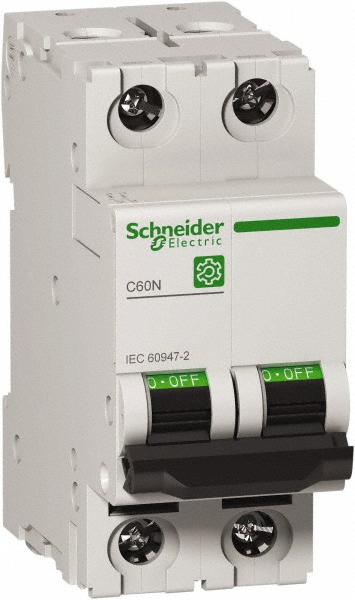

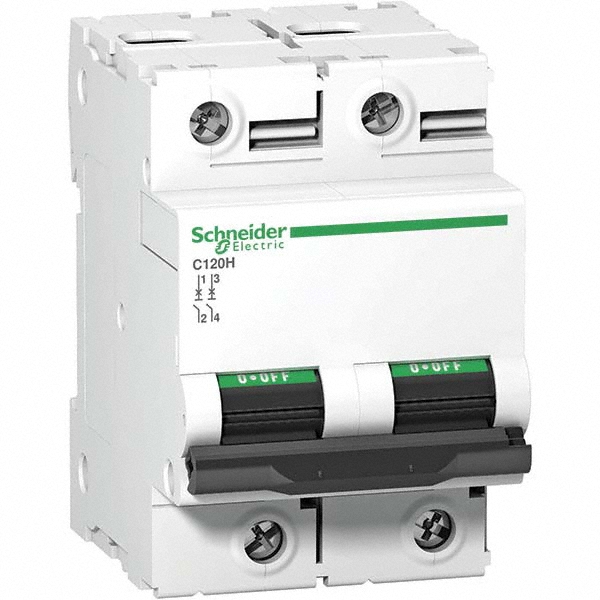

Thermal Magnetic Trip, Multiple Breaking Capacity Ratings, 18-1 AWG, 76mm Deep x 81mm High x 54mm Wide
| Circuit Breaker Type | Miniature |
|---|---|
| Amperage | 125 |
| Voltage | 440V AC |
| Wire Size (AWG) | 18-1 |
| Number Of Poles | 2 |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Box Lugs |
| Mount Type | DIN Rail |
| Maximum Operating Temperature F | 158 |
| Minimum Operating Temperature F | -22 |
| Overall Width (mm) | 54.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 2.13 |
| Overall Height (Decimal Inch) | 81 |
| Reset Actuator Type | Toggle Switch |
| For Use With | Multi 9 Modular System |
| Standards | UL Listed; IEC Certified; UL Recognized |
| UNSPSC Code | 39121603 |
| Country of Origin | France |
| MSC Number | MSC# 56787575 |
