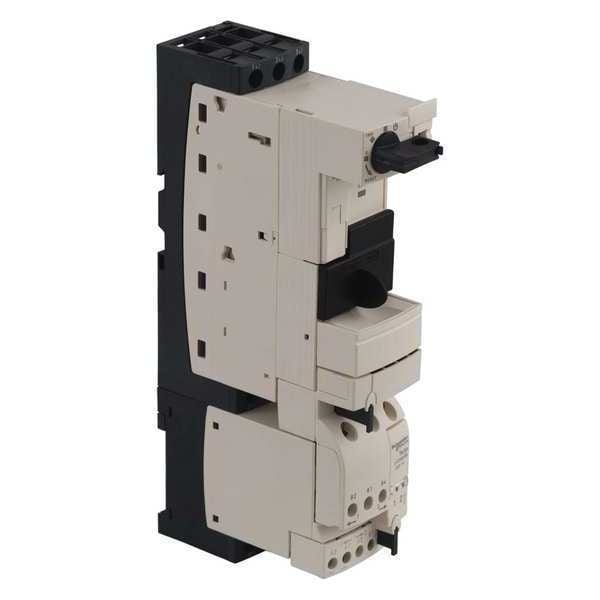

12A Interruptor Termomagnético con Autorecuperación con Terminal Luminoso Azul, 24V DC, 3 Polos.
| Item | 12A Selfprrevstr W/Terms Luc*Bl |
|---|---|
| Coil Volts | 24V DC |
| Auxiliary Contact Form | Linked contacts IEC 60947-4-1; Mirror contact IEC 60947-1 |
| Starter Type | Reversing |
| Number of Poles | 3 |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine |
| Width | 45 mm |
| Features | Mercury Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation |
| Hz | 40 to 60 Hz |
| Height | 224 mm |
| Depth | 126 mm |
| Weight | 1.27 kg |
| Operating Voltage | 690V AC |
| Tightening Torque | Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) flat 0.20 in (5 mm); Control circuit 7.08 to 10.62 lbf.in (0.8 to 1.2 N.m) Philips no 1 0.20 in (5 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) flat 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) Philips No 2 0.24 in (6 mm); Power circuit 16.82 to 22.13 lbf.in (1.9 to 2.5 N.m) pozidriv No 2 0.24 in (6 mm) |
| Inrush Restraint Duration | 15 ms DC |
| Immunity To Microbreaks | 3 msec |
| Heat Dissipation | 2 W control circuit with LUCA, LUCB, LUCC, LUCD; 1.7 W control circuit with LUCM |
| Product Or Component Type | power base |
| IP Degree Of Protection | IP20 IEC 60947-1 front panel and wired terminals); IP20 IEC 60947-1 other faces); IP40 IEC 60947-1 front panel outside connection zone) |
| Typical Current Consumption | 120 mA 24 V DC I maximum while closing; 120 mA 24 V DC I rms sealed |
| Rated Operational Current | 12 A Less than or Equal to 440 V; 12 A 500 V; 9 A 690 V |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Device Application | Motor control; Motor protection |
| Auxiliary Contact Composition | 1 NO + 1 NC |
| Protective Treatment | TH IEC 60068 |
| Mechanical Durability | 15 Mcycles |
| Product Name | TeSys Ultra |
| Control Circuit Voltage | 24 V DC |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Auxiliary Contacts Type | Linked contacts 1 NO + 1 NC) IEC 60947-4-1; Mirror contact 1 NC) IEC 60947-1 |
| Conventional Free Air Thermal Current | 12 A |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Maximum Operating Rate | 3600 cyc/h |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Operating Time | 150 ms with change of direction power circuit; 75 ms without change of direction power circuit; 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit; 75 ms closing with LUCM control circuit; 70 ms closing with LUCA, LUCB, LUCC, LUCD control circuit |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Rated Operational Voltage | 690 V AC power circuit |
| Vibration Resistance | 2 gn 5 to 300 Hz) power poles open IEC 60068-2-27; 4 gn 5 to 300 Hz) power poles closed IEC 60068-2-27 |
| Connections - Terminals | Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.34 to 1.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (0.75 to 1.5 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1 to 10 mm²) rigid; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (2.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1 to 6 mm²) rigid; Power circuit screw clamp terminals 2 0.00 to 0.01 in² (1.5 to 6 mm²) flexible without cable end |
| Product Compatibility | Control unit LUC.X6BL; Control unit LUC.1XBL; Control unit LUC.05BL; Control unit LUC.12BL |
| Fixing Mode | Clipped DIN rail; Screw-fixed plate |
| Rated Insulation Voltage | 690 V IEC 60947-6-2 3; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N |
| Poles Description | 3P |
| Ambient Air Temperature For Operation | -13 to 140°F (-25 to 60°C) with LUCM; -13 to 158°F (-25 to 70°C) with LUCA, LUCB, LUCC, LUCD |
| Compatibility Code | LU2B |
| Operating Altitude | 6561.68 ft (2000 m) |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Safety Reliability Level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Rated Service Breaking Capacity | 50 kA 230 V; 50 kA 440 V; 10 kA 500 V; 4 kA 690 V |
| Suitability For Isolation | Yes |
| Rated Impulse Withstand Voltage | 6 kVIEC 60947-6-2 |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Control Circuit Voltage Limits | 14.5 V DC drop-out; 20 to 27 V DC in operation |
| Package Quantity | 1 |
