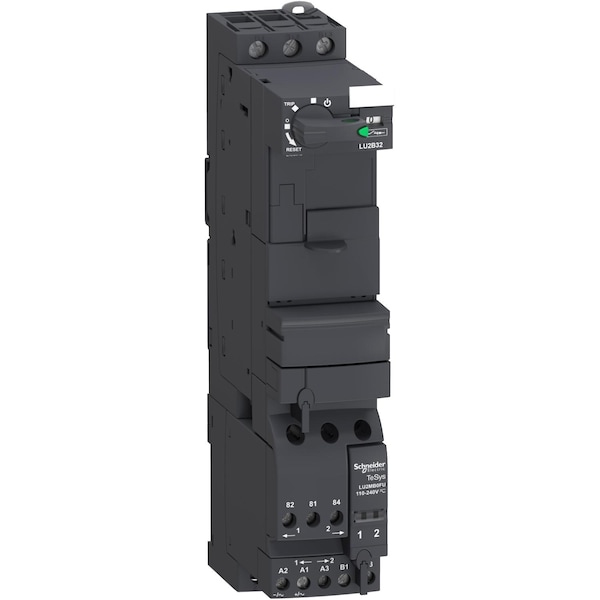

32A Interruptor automático con terminal automático y botón de prueba, 24V DC, 3 polos
| Item | 32A Selfprrevstr W/Terms Luc*Bl |
|---|---|
| Coil Volts | 24V DC |
| Auxiliary Contact Form | Linked contacts IEC 60947-4-1; Mirror contact IEC 60947-1 |
| Starter Type | Reversing |
| Number of Poles | 3 |
| Width | 45 mm |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine |
| Depth | 126 mm |
| Height | 224 mm |
| Features | Mercury Free; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration; Suitability For Isolation |
| Hz | 40 to 60 Hz |
| Operating Voltage | 690V AC |
| Weight | 1.27 kg |
| Package Quantity | 1 |
