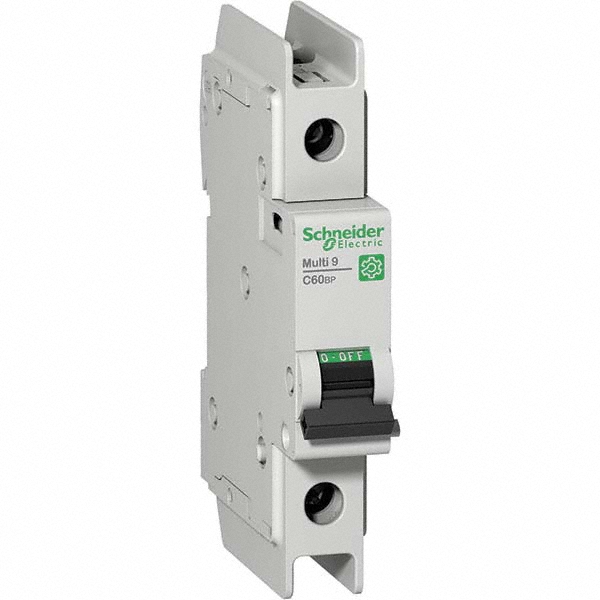

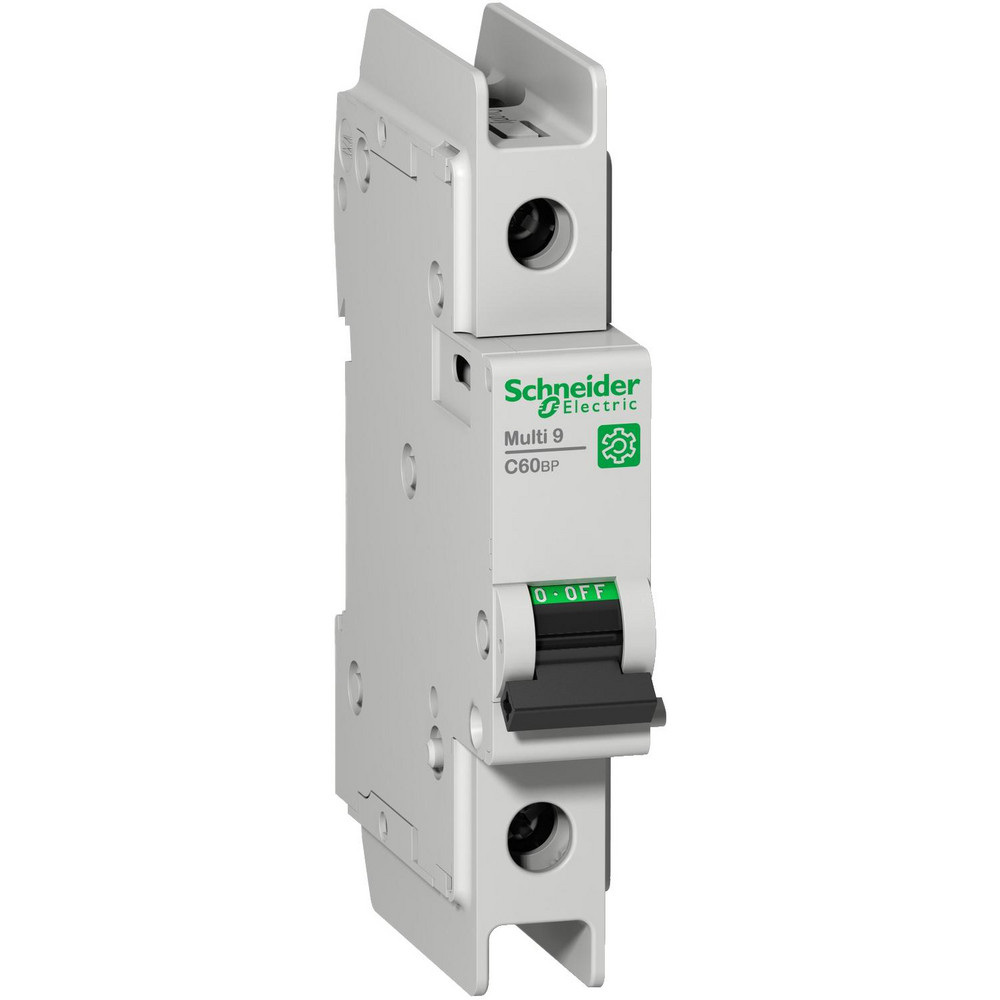

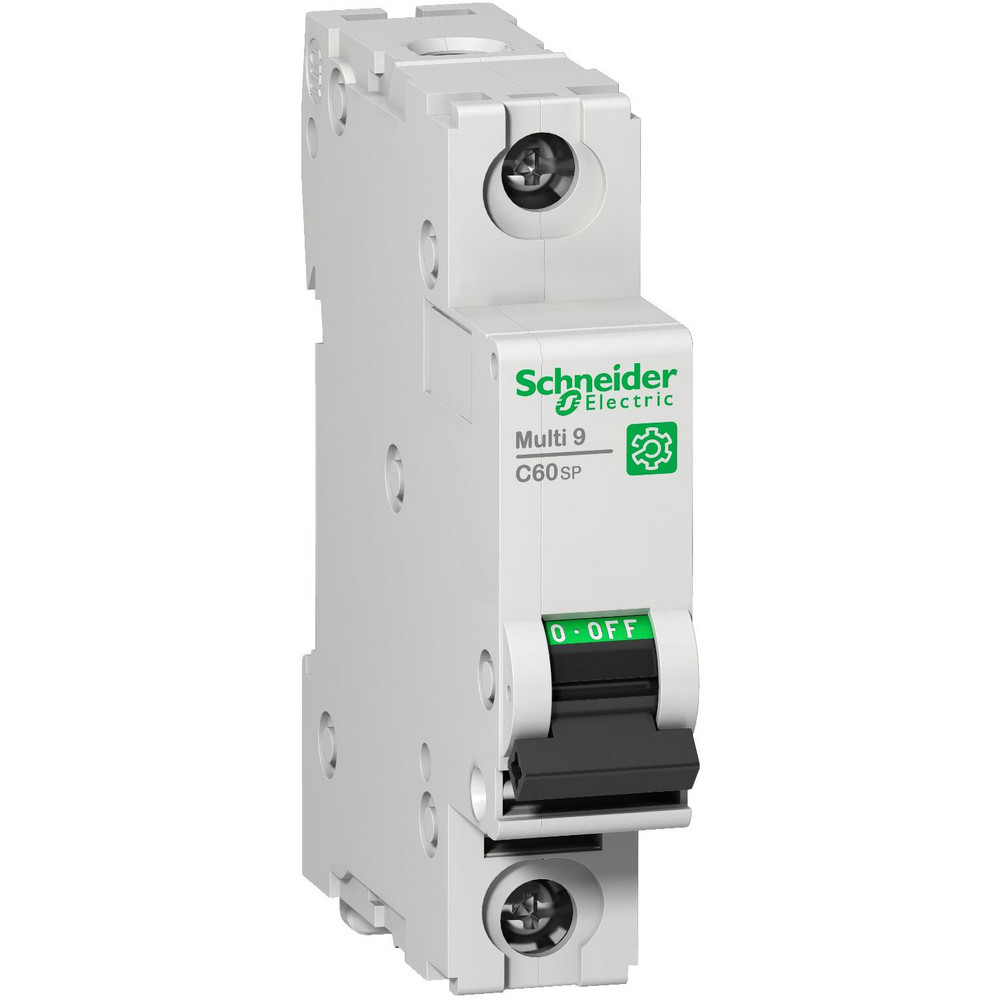

Thermal-Magnetic Trip, Multiple Breaking Capacity Ratings, 18-8 AWG
| Circuit Breaker Type | Protection |
|---|---|
| Amperage | 8 |
| Voltage | 277V |
| Wire Size (AWG) | 18-8 |
| Number Of Poles | 1 |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Box Lugs |
| Mount Type | Clip |
| Maximum Operating Temperature F | 158 |
| Minimum Operating Temperature F | -22 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.71 |
| Overall Height (Decimal Inch) | 4.0600 |
| Reset Actuator Type | Toggle Switch |
| For Use With | OEM Panel |
| Standards | CSA; CCC; IEC; UL 489 |
| UNSPSC Code | 39121603 |
| Country of Origin | France |
| MSC Number | MSC# 46119392 |
