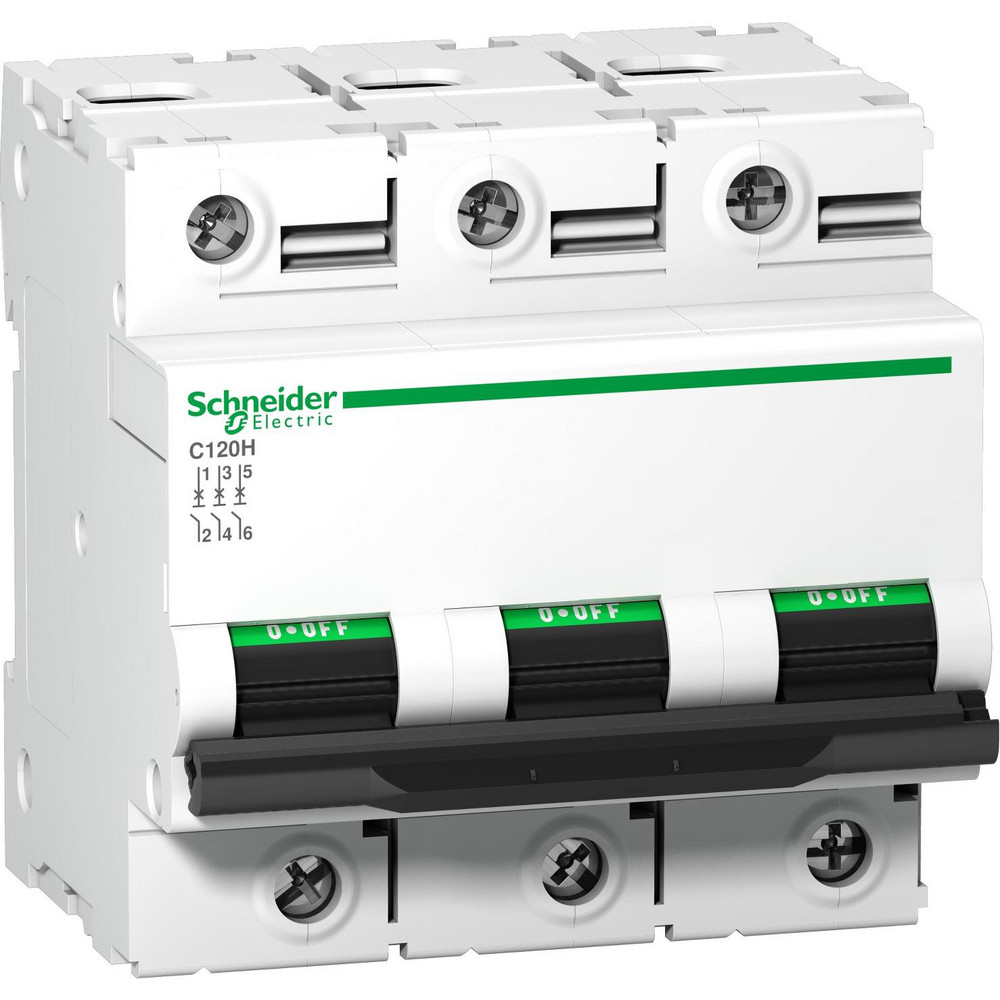

Thermal Magnetic Trip, 15 kA at 375 VDC Breaking Capacity, 18-1 AWG, 73mm Deep x 81mm High x 81mm Wide
| Circuit Breaker Type | Miniature |
|---|---|
| Amperage | 80 |
| Voltage | 440V AC |
| Wire Size (AWG) | 18-1 |
| Number Of Poles | 3 |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Tunnel |
| Mount Type | DIN Rail |
| Maximum Operating Temperature F | 140 |
| Minimum Operating Temperature F | -22 |
| Overall Width (mm) | 81.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 3.19 |
| Overall Height (Decimal Inch) | 81 |
| Reset Actuator Type | Toggle Switch |
| For Use With | Multi 9 Modular System |
| Standards | UL Listed; IEC Certified; UL Recognized |
| UNSPSC Code | 39121603 |
| Country of Origin | France |
| MSC Number | MSC# 56787484 |
