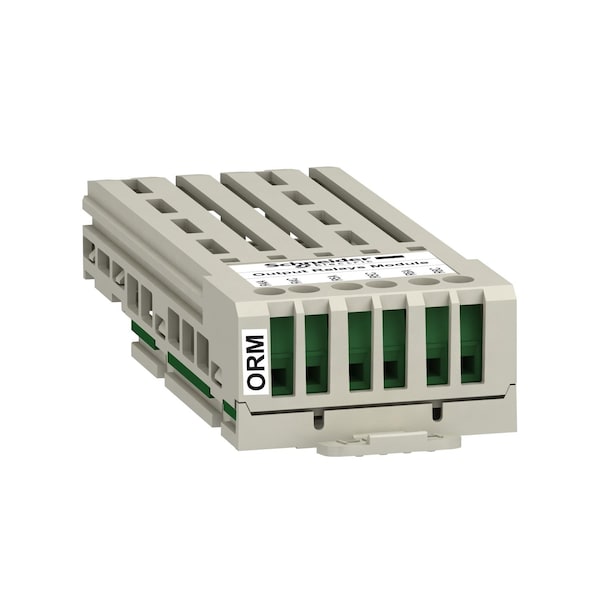

Módulo de salida adicional, Altivar, salida de relé, 24 a 30V DC, 1 terminal de tornillo.
| Item | Output Relays Extension Module |
|---|---|
| Electrical Connection | screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Maximum Switching Current | 2 A 250 V AC inductive, cos phi = 0.4 5 ms || 2 A 30 V DC inductive, cos phi = 0.4 5 ms || 5 A 250 V AC resistive, cos phi = 1 5 ms || 5 A 30 V DC resistive, cos phi = 1 5 ms |
| Input/Output Type | 3 relay output |
| Electrical Durability | 100000 cycles |
| Discrete Output Type | R4, R5, R6) relay normally open 1-1 ms |
| Minimum Switching Current | 5 mA 24 V DC |
| Range Compatibility | Altivar Machine ATV340 || Easy Altivar 610 || Altivar Process ATV900 || Altivar Process ATV600 |
| Discrete Output Number | 3 |
| Product Or Component Type | module |
| Package Quantity | 1 |
