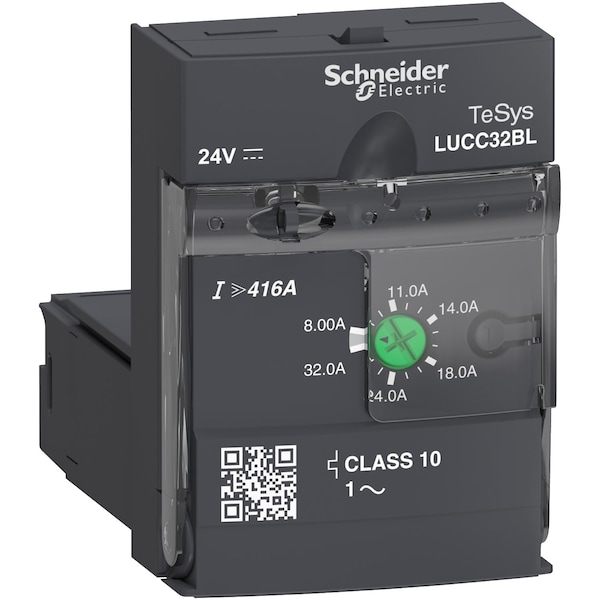

Unidad de control avanzado, TeSys Ultra, 8A a 32A, motores de 1P, protección y diagnóstico, clase 10, bobina 24VDC.
| Item | Advcntrlunitcl101Ph 832A 24Vdc |
|---|---|
| Overload Relay Amp Setting | 8 to 32 A |
| Coil Volts | 24V DC |
| Hz | 40 to 60 Hz |
| Standards | EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, with phase barrier, CSA C22.2 No 60947-4-1, with phase barrier |
| Width | 45 mm |
| Depth | 60 mm |
| Height | 66 mm |
| Features | Protection against overload and short-circuit; Earth fault protection; Manual reset; Protection against phase failure and phase imbalance; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Operating Voltage | 690V AC |
| Fire Resistance | 960°C parts supporting live components IEC 60695-2-12, 650°C IEC 60695-2-12 |
| Product or Component Type | Advanced control unit |
| Network Frequency | 40...60 Hz |
| Function Available | protection against overload and short-circuit, earth fault protection, manual reset, protection against phase failure and phase imbalance |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2, 8 kV 4 on contact IEC 61000-4-2 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Range of Product | TeSys Ultra |
| Ip Degree of Protection | IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1 |
| Thermal Overload Class | class 10 40-60 Hz -25-55°C IEC 60947-6-2, class 10 40-60 Hz -25-55°C UL 508 |
| Motor Power Kw | 7.5 kW 400 to 440 V AC 50/60 Hz 1 phase |
| Control Circuit Voltage Limits | 20...27 V DC 24 V in operation, 14.5 V DC 24 V drop-out |
| Device Short Name | LUCC |
| Operating Time | 35 ms opening with LUB32 control circuit, 35 ms opening with LUB38 control circuit, 70 ms closing with LUB32 control circuit, 70 ms closing with LUB38 control circuit |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27, 15 gn power poles closed IEC 60068-2-27 |
| Pvc Free | Yes |
| Compatibility Code | LUCC |
| Heat Dissipation | 3-3 W control circuit with LUB32, 3-3 W control circuit with LUB38 |
| Protective Treatment | TH IEC 60068 |
| Ambient Air Temperature For Storage | -40-85°C |
| Ambient Air Temperature For Operation | -25-70°C |
| Typical Current Consumption | 220 mA 24 V DC I maximum while closing with LUB32, 220 mA 24 V DC I maximum while closing with LUB38, 80 mA 24 V DC I rms sealed with LUB32, 80 mA 24 V DC I rms sealed with LUB38 |
| Tripping Threshold | 14.2 x Ir +/- 20 % |
| Immunity To Voltage Dips | 70 % / 500 ms IEC 61000-4-11 |
| Product Name | TeSys Ultra |
| Resistance To Radiated Fields | 10 V/m 3 IEC 61000-4-3 |
| Load Type | Single-phase motor |
| [Ue] Rated Operational Voltage | 690 V AC |
| Safe Separation of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Range | TeSys |
| [Uc] Control Circuit Voltage | 24 V DC |
| Product Specific Application | basic protection and advanced functions, communication |
| Thermal Protection Adjustment Range | 8 to 32 A |
| Fixing Mode | plug-in |
| Product Compatibility | power base LUB32, power base LUB38, power base LUB320, power base LUB380, reversing contactor breaker LU2B32BL, reversing contactor breaker LU2B38BL |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Reset | manual reset |
| Immunity To Microbreaks | 3 msec |
| Vibration Resistance | 2 gn 5-300 Hz power poles open IEC 60068-2-6, 4 gn 5-300 Hz power poles closed IEC 60068-2-6 |
| Operating Altitude | 6561.68 ft (2000 m) |
| Device Application | motor control, motor protection |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Control Circuit Voltage | 24 V DC |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Main Function Available | Protection against overload and short-circuit; Earth fault protection; Manual reset; Protection against phase failure and phase imbalance |
| Rated Operational Voltage | 690 V AC |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Package Quantity | 1 |
