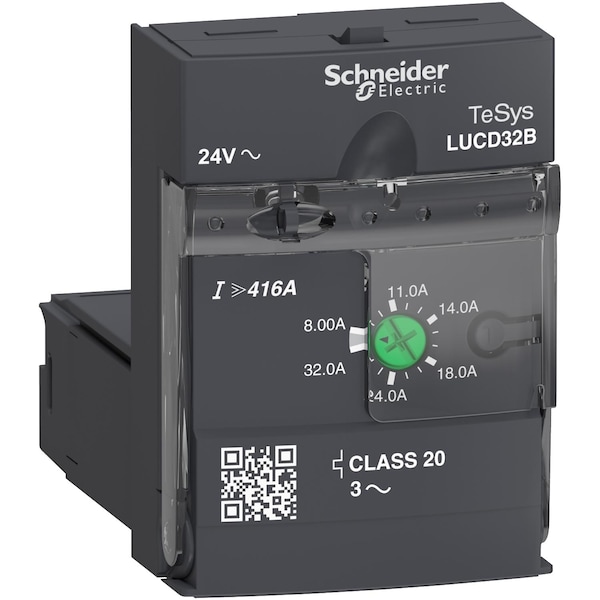

Unidad de control avanzada, TeSys Ultra, 8A a 32A, motores de 3P, protección y diagnóstico, clase 20, bobina 24VAC.
| Item | Advcntrlunitcl203Ph 832A 24Vac |
|---|---|
| Overload Relay Amp Setting | 8 to 32 A |
| Coil Volts | 24V AC |
| Hz | 40 to 60 Hz |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine |
| Features | Protection against phase failure and phase imbalance; Manual reset; Protection against overload and short-circuit; Earth fault protection; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Depth | 60 mm |
| Width | 45 mm |
| Height | 66 mm |
| Operating Voltage | 690V AC |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Product Specific Application | Basic protection and advanced functions, communication |
| Load Type | 3-phase motor self-cooled |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2 |
| Vibration Resistance | 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6 |
| Typical Current Consumption | 220 mA 24 V AC I maximum while closing with LUB32; 220 mA 24 V AC I maximum while closing with LUB38; 90 mA 24 V AC I rms sealed with LUB32; 90 mA 24 V AC I rms sealed with LUB38 |
| Tripping Threshold | 14.2 x Ir +/- 20% |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Fixing Mode | Plug-in front face |
| Protective Treatment | TH IEC 60068 |
| Phase Failure Sensitivity | Yes |
| Immunity To Microbreaks | 3 msec |
| Rated Operational Voltage | 690 V AC |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Main Function Available | Protection against phase failure and phase imbalance; Manual reset; Protection against overload and short-circuit; Earth fault protection |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Control Circuit Voltage Limits | 20 to 26.5 V AC 24 V in operation; 14.5 V AC 24 V drop-out |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Product Compatibility | Power base LUB32; Power base LUB38; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B32B |
| IP Degree Of Protection | IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Product Name | TeSys Ultra |
| Operating Altitude | 6561.68 ft (2000 m) |
| Reset | Manual reset |
| Device Application | Motor control; Motor protection |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Heat Dissipation | 3 W control circuit with LUB32; 3 W control circuit with LUB38 |
| Compatibility Code | LUCD |
| Motor Power KW | 15 kW 400 to 440 V AC 50/60 Hz; 15 kW 500 V AC 50/60 Hz; 18.5 kW 690 V AC 50/60 Hz |
| Product Or Component Type | Advanced control unit |
| Thermal Overload Class | Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508 |
| Control Circuit Voltage | 24 V AC |
| Operating Time | 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit |
| Range | TeSys |
| Thermal Protection Adjustment Range | 8 to 32 A |
| Function Available | protection against phase failure and phase imbalance, manual reset, protection against overload and short-circuit, earth fault protection |
| Network Frequency | 40...60 Hz |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2, 600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1 |
| Package Quantity | 1 |
