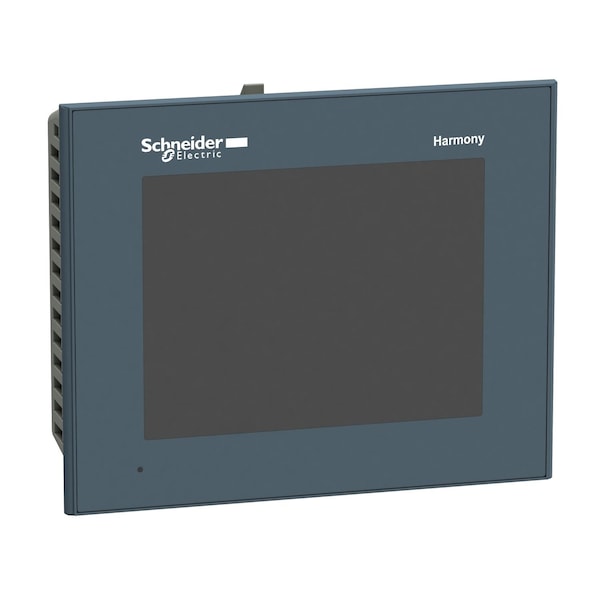

Panel táctil avanzado, Harmony GTO, 320 x 240píxeles QVGA, 5.7 pulgadas TFT, 64 MB.
| Item | 57 Color Touch Panel Qvgatft |
|---|---|
| Height | 137 mm |
| Width | 169.5 mm |
| Depth | 59.5 mm |
| Standards | IEC 61000-6-2 || UL 508 || EN 61131-2 |
| Enclosure Material | PPT |
| Maximum Power Consumption In W | 6.5 W when power is not supplied to external devices || 4.5 W when backlight is OFF || 5 W when backlight is dimmed || 10.5 W |
| Integrated Connection Type | COM1 serial link SUB-D 9 RS232C 2400 to 115200 bps || COM2 serial link RJ45 RS485 2400 to 115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || USB 2.0 type A || USB 2.0 type mini B |
| Memory Description | flash EPROM, 64 MB |
| Product Or Component Type | advanced touchscreen panel |
| Display type | backlit colour TFT LCD |
| Touch Panel | resistive film, 1000000 cycles |
| Vibration Resistance | 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 |
| Data Backed Up | 128 kB internal RAM SRAM) |
| Touch Sensitive Zone | 1024 x 1024 |
| Fixing Mode | by 4 screw clamps |
| Relative Humidity | 10-90 % without condensation |
| Product Certifications | KCC || CE || cULus || C-tick || UKCA || UKEX |
| Downloadable Protocols | Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols |
| Front Material | PPT |
| Backlight Lifespan | 50000 hours white 25°C |
| Ip Degree Of Protection | IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel) |
| Inrush Current | 30 A |
| Software Designation | Vijeo Designer configuration software >= V6.1 |
| Resistance To Electrostatic Discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
| Local Signalling | status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed |
| Battery Type | lithium internal RAM 100 days 5 day 10 year |
| Brightness | 16 levels by touch panel || 16 levels by software |
| Nema Degree Of Protection | NEMA 4X front panel (indoor use) |
| Operating Altitude | < 6561.68 ft (2000 m) |
| Supply | external source |
| Display Size | 5.7 in |
| Ambient Air Temperature For Operation | 0-50°C |
| Shock Resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Ambient Air Temperature For Storage | -20-60°C |
| Type Of Cooling | natural convection |
| [Us] Rated Supply Voltage | 24 V DC |
| Operating System | Harmony |
| Product Mounting | flush mounting |
| Display Colour | 65536 colours |
| Display Resolution | 320 pixels x 240 pixels QVGA |
| Terminal Type | touchscreen display |
| Supply Voltage Limits | 19.2-28.8 V |
| Character Font | Chinese (simplified Chinese); Korean; ASCII (European characters); Japanese (ANK, Kanji); Taiwanese (traditional Chinese) |
| Range of Product | Harmony GTO |
| Package Quantity | 1 |
