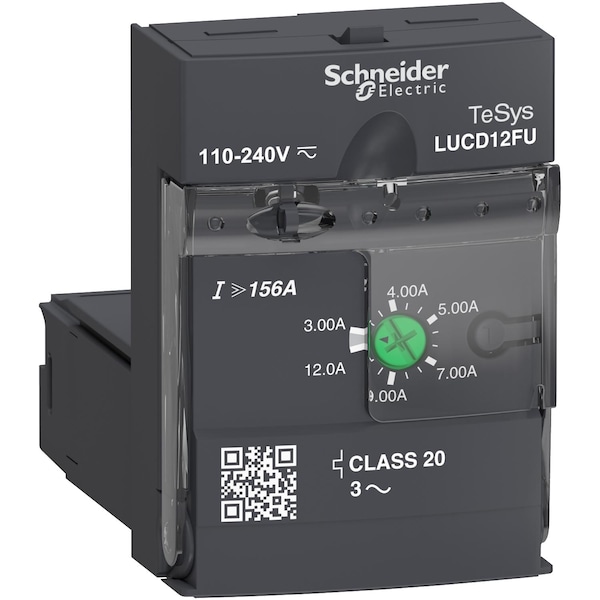

Unidad de control avanzada para CL203, 3 Ph, 312A, 110-240Vac.
| Item | Advcntrlunitcl203Ph 312A 110240Vac |
|---|---|
| Overload Relay Amp Setting | 3 to 12 A |
| Coil Volts | 110 to 240V AC; 110 to 220V DC |
| Standards | EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine |
| Height | 66 mm |
| Hz | 40 to 60 Hz |
| Features | Protection against phase failure and phase imbalance; Manual reset; Earth fault protection; Protection against overload and short-circuit; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration |
| Width | 45 mm |
| Depth | 60 mm |
| Operating Voltage | 690V AC |
| Resistance To Electrostatic Discharge | 8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2 |
| Device Application | Motor control; Motor protection |
| Load Type | 3-phase motor self-cooled |
| Main Function Available | Protection against phase failure and phase imbalance; Manual reset; Earth fault protection; Protection against overload and short-circuit |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
| Protective Treatment | TH IEC 60068 |
| Utilisation Category | AC-41, AC-43, AC-44 |
| Control Circuit Voltage | 110 to 240 V AC; 110 to 220 V DC |
| Vibration Resistance | 2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6 |
| Reset | Manual reset |
| Operating Time | 35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 50 ms closing with LUB12 control circuit; 50 ms closing with LUB32 control circuit; 50 ms closing with LUB38 control circuit |
| Tripping Threshold | 14.2 x Ir +/- 20% |
| Rated Insulation Voltage | 690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1 |
| Motor Power KW | 5.5 kW 400 to 440 V AC 50/60 Hz; 5.5 kW 500 V AC 50/60 Hz; 9 kW 690 V AC 50/60 Hz |
| Compatibility Code | LUCD |
| Phase Failure Sensitivity | Yes |
| Typical Current Consumption | 280 mA 110 to 240 V AC I maximum while closing with LUB12; 280 mA 110 to 240 V AC I maximum while closing with LUB32; 280 mA 110 to 240 V AC I maximum while closing with LUB38; 280 mA 110 to 220 V DC I maximum while closing with LUB12; 280 mA 110 to 220 V DC I maximum while closing with LUB32; 280 mA 110 to 220 V DC I maximum while closing with LUB38; 35 mA 110 to 240 V AC I rms sealed with LUB12; 25 mA 110 to 240 V AC I rms sealed with LUB32; 25 mA 110 to 240 V AC I rms sealed with LUB38; 35 mA 110 to 220 V DC I rms sealed with LUB12; 25 mA 110 to 220 V DC I rms sealed with LUB32; 25 mA 110 to 220 V DC I rms sealed with LUB38 |
| IP Degree Of Protection | IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1 |
| Product Compatibility | Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12FU; Reversing contactor breaker LU2B32FU; Reversing contactor breaker LU2B38FU |
| Ambient Air Temperature For Storage | -40 to 185°F |
| Fixing Mode | Plug-in front face |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2 |
| Ambient Air Temperature For Operation | -13 to 158°F (-25 to 70°C) |
| Operating Altitude | 6561.68 ft (2000 m) |
| Safe Separation Of Circuit | 400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 |
| Resistance To Radiated Fields | 9.14 V/m (10 V/m) 3 IEC 61000-4-3 |
| Thermal Overload Class | Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) IEC 60947-6-2; Class 20 40 to 60 Hz -13 to 158°F (-25 to 70°C) UL 508 |
| Product Or Component Type | Advanced control unit |
| Product Specific Application | Basic protection and advanced functions, communication |
| Fire Resistance | 1760°F (960°C) parts supporting live components IEC 60695-2-12; 1202°F (650°C) IEC 60695-2-12 |
| Control Circuit Voltage Limits | 88 to 264 V AC 110 to 240 V in operation; 88 to 242 V DC 110 to 220 V in operation; 55 V AC 110 to 240 V drop-out; 55 V DC 110 to 220 V drop-out |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Immunity To Microbreaks | 3 msec |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27 |
| Product Certifications | CCC, CSA, EAC, UL, ASEFA, ATEX, CE, Marine |
| Immunity To Voltage Dips | 70% / 500 ms IEC 61000-4-11 |
| Rated Operational Voltage | 690 V AC |
| Product Name | TeSys Ultra |
| Heat Dissipation | 2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38 |
| Rated Impulse Withstand Voltage | 6 kV IEC 60947-6-2 |
| Package Quantity | 1 |
