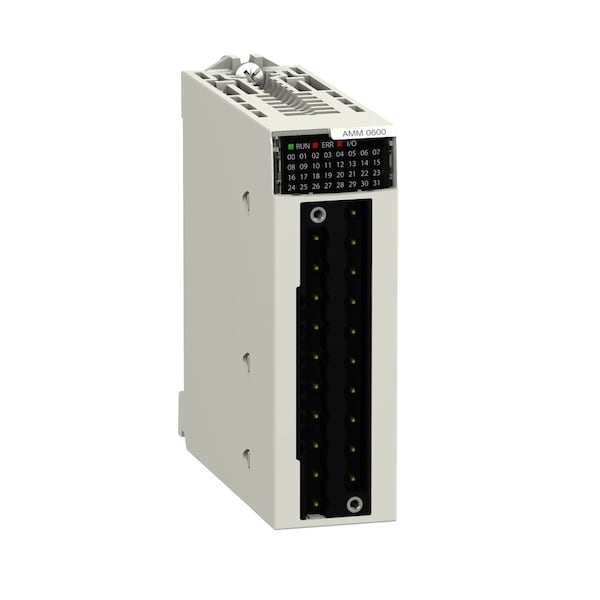

Módulo de E/S de alto nivel analógico no aislado, Modicon X80, 4 entradas, 2 salidas, 0 a 20 mA, 4 a 20 mA, 10 V positivo o negativo.
| Item | Mixed analog I/O module X80 - 4 inputs - |
|---|---|
| Width | 4.3 in |
| Height | 2.2 in |
| Standards | EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 |
| Length | 4.6" |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Analogue Input Resolution | 12 bits 0 to 20 mA || 12 bits 0 to 5 V || 12 bits 1 to 5 V || 12 bits 4 to 20 mA || 13 bits 0 to 10 V || 14 bits +/- 10 V |
| Analogue Input Number | 4 |
| Nominal Read Cycle Time | 5 ms for 4 channels |
| Ambient Air Temperature For Storage | -40-85 °C |
| Input Output Isolation | non isolated |
| Shock Resistance | 30 gn |
| Operating Altitude | 0 to 6561.68 ft (0 to 2000 m) || 2000 to 5000 m with derating factor |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Maximum Conversion Value | +/- 11.25 V +/- 10 V output || +/- 11.25 V +/- 10 V input || 0 to 30 mA 0 to 20 mA input || 0 to 30 mA 4 to 20 mA input || +/- 11.25 V 0 to 10 V input || +/- 11.25 V 0 to 5 V input || +/- 11.25 V 1 to 5 V input || 0 to 24 mA 0 to 20 mA output || 0 to 24 mA 4 to 20 mA output |
| Ambient Air Temperature For Operation | 0-60 °C |
| Analogue Input Type | current 0 to 20 mA || current 4 to 20 mA || voltage +/- 10 V || voltage 0 to 10 V || voltage 0 to 5 V || voltage 1 to 5 V |
| Analogue Output Resolution | 11 bits, 0 to 20 mA || 11 bits, 4 to 20 mA || 12 bits, +/- 10 V |
| Power Consumption In W | 2.6 W 24 V DC typical || 3.2 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum |
| Vibration Resistance | 3 gn |
| Fallback Mode | predefined || configurable |
| Permitted Overload On Inputs | +/- 30 mA 0 to 20 mA || +/- 30 mA 4 to 20 mA || +/- 30 V +/- 10 V || +/- 30 V 0 to 10 V || +/- 30 V 0 to 5 V || +/- 30 V 1 to 5 V |
| Status Led | 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O |
| Temperature Drift | 100 ppm/°C +/- 10 V output || 100 ppm/°C 0 to 20 mA output || 100 ppm/°C 4 to 20 mA output || 30 ppm/°C +/- 10 V input || 30 ppm/°C 0 to 10 V input || 30 ppm/°C 0 to 5 V input || 30 ppm/°C 1 to 5 V input || 50 ppm/°C 0 to 20 mA input || 50 ppm/°C 4 to 20 mA input |
| Ip Degree Of Protection | IP20 |
| Recalibration | factory calibrated on outputs || internal on inputs |
| Conversion Time | <= 2 ms |
| Current Consumption | 240 mA 3.3 V DC |
| Output Level | high level |
| Measurement Error | 0.25 % of full scale 0 to 20 mA 25 °C output || 0.25 % of full scale 4 to 20 mA 25 °C output || <= 0.35 % of full scale +/- 10 V 0 to 60 °C input || <= 0.35 % of full scale 0 to 10 V 0 to 60 °C input || <= 0.35 % of full scale 0 to 5 V 0 to 60 °C input || <= 0.35 % of full scale 1 to 5 V 0 to 60 °C input || <= 0.5 % of full scale 0 to 20 mA 0 to 60 °C input || <= 0.5 % of full scale 4 to 20 mA 0 to 60 °C input || <= 0.6 % of full scale +/- 10 V 0 to 60 °C output || <= 0.6 % of full scale 0 to 20 mA 0 to 60 °C output || <= 0.6 % of full scale 4 to 20 mA 0 to 60 °C output || 0.25 % of full scale +/- 10 V 25 °C output || 0.25 % of full scale +/- 10 V 25 °C input || 0.25 % of full scale 0 to 10 V 25 °C input || 0.25 % of full scale 0 to 5 V 25 °C input || 0.25 % of full scale 1 to 5 V 25 °C input || 0.35 % of full scale 0 to 20 mA 25 °C input || 0.35 % of full scale 4 to 20 mA 25 °C |
| Isolation Voltage | 1400 V DC between channels and ground || 1400 V DC between channels and bus || 750 V DC between group of I/O channels |
| Analogue Output Type | current 0 to 20 mA || current 4 to 20 mA || voltage +/- 10 V |
| Input Level | high level |
| Mtbf Reliability | 1,400,000 H |
| Minimum Crosstalk Attenuation | 70 dB |
| Fast Read Cycle Time | 1 ms + 1 ms x number of channels used |
| Product Certifications | CE || RCM || CSA || EAC || Merchant Navy || UL |
| Electrical Connection | 20 ways 1 connector |
| Analogue Output Number | 2 |
| Input Impedance | 250 Ohm |
| Product Or Component Type | module |
| Common Mode Rejection | 80 dB |
| Type of Filter | first order digital filtering by firmware |
| Range of Product | Modicon X80 |
| Package Quantity | 1 |
