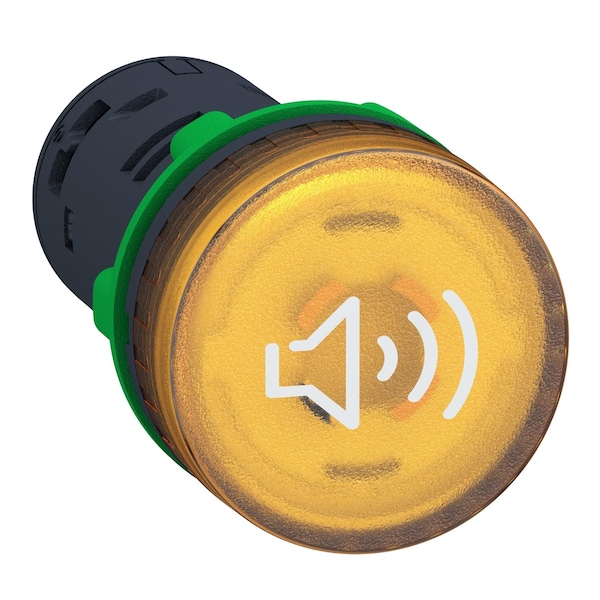

Anunciador, Harmony XB5, zumbador iluminado, plástico, amarillo, 22mm, tono continuo o intermitente, 24V AC DC.
| Item | Yellow Illum Buzzer 24V 22MM |
|---|---|
| Bezel Material | plastic |
| Depth | 55 mm |
| Width | 29 mm |
| Standards | IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || EN 60947-5-1 || EN 60947-1 || EN 60947-5-4 || JIS C8201-1 || IEC 60529 || EN 50102 || IEC 50102 |
| Height | 29 mm |
| Resistance To High Pressure Washer | 9000000 Pa 80°C 0.1 m |
| Nema Degree Of Protection | NEMA 4X || NEMA 13 |
| Cap/Operator Or Lens Colour | yellow |
| Product Or Component Type | annunciator |
| Current Consumption | <= 58 mA |
| Mounting Diameter | 22 mm |
| [Us] Rated Supply Voltage | 24 V +/- 10 % |
| Protective Treatment | TH |
| Supply Circuit Type | AC/DC |
| Noise Level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| Ip Degree Of Protection | IP20 || IP66 || IP67 || IP69 || IP69K |
| Product Certifications | UL Listed || CSA || BV |
| Signalling Type | continuous or intermittent tone |
| Ik Degree Of Protection | IK05 || IK03 |
| Supply Frequency | 50/60 Hz |
| Ambient Air Temperature For Storage | -40-70°C |
| Overvoltage Category | class II IEC 60536 |
| Ambient Air Temperature For Operation | -40-70°C |
| Range of Product | Harmony XB5 |
| Package Quantity | 1 |
