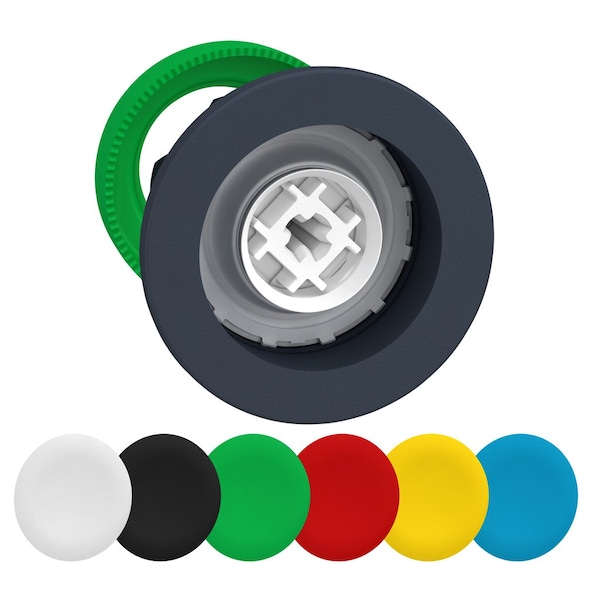

Cabezal de botón de empuje empotrado antimicrobiano, Harmony XB5, de plástico, con juego de 6 tapas de colores, 30 mm, retorno por resorte, sin marcar.
| Item | Push Button Multi Cap Pack |
|---|---|
| Type of Operator | spring return |
| Standards | CSA C22.2 || UL 508 || UL Listed || CSA |
| IP Rating | IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653. |
| Height | 37 mm |
| Width | 37 mm |
| Depth | 30 mm |
| Header | built-in, flush |
| Ambient Air Temperature For Operation | -40-70°C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6, 2 mm peak to peak 2-10 Hz)IEC 60068-2-6 |
| Device Short Name | ZB5 |
| Mounting Diameter | 30.5 mm |
| Mechanical Durability | 10,000,000 cycle |
| Shape of Signaling Unit Head | round |
| Product Compatibility | ZBYF..., ZBZF32, ZBZF33, ZB5AZ |
| Bezel Material | plastic |
| Operator Additional Information | with set of 6 color cap |
| Protective Treatment | TH |
| Product or Component Type | head for non-illuminated push-button |
| Ambient Air Temperature For Storage | -40-70°C |
| Ip Degree of Protection | IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E |
| Range of Product | Harmony XB5 |
| Resistance To High Pressure Washer | 7000000 Pa 55°C 0.1 m |
| Overvoltage Category | class II IEC 60536 |
| Ik Degree of Protection | IK03 conforming to IEC 50102 |
| Electrical Composition Code | C1 9 single front mounting, C2 9 single and double front mounting, C11 3 single front mounting, C15 1 single front mounting, SF1 3 single front mounting |
| Package Quantity | 1 |
