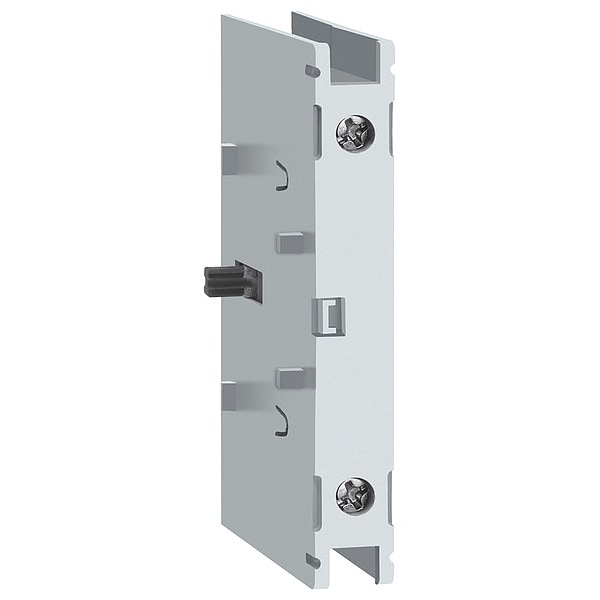

Contacto auxiliar, 10 A, 690V CA, Gris
| Item | Auxiliary Contact Block |
|---|---|
| For Use With | TeSys VLS Series |
| Color | Gray |
| Voltage | 690V AC |
| Description/Special Features | Mercury Free, REACh Free of SVHC, RoHS Exemption Information, Toxic Heavy Metal Free |
| Standards | CSA C22.2 No 14, IEC 60947-3, IEC 60947-5, UL 508 |
| Max. Voltage | 8 kV |
| Height | 3.07 in |
| Maximum Voltage | 690V AC |
| Current Rating | 10 A |
| Includes | 1 NO |
| Depth | 1.93 in |
| Mounting Mechanism | DIN Rail |
| Compatible with Manufacturer Model Number | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| Product Type | Auxiliary Contact Block |
| Width | 0.47 in |
| Compatible with Manufacturer Model Number [NEW] | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| Compatible Manufacturer Part Number | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| Compatible Grainger Part Number | 55WT65, 615A70, 615A71 |
| Compatible with Manufacturer Part Number | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| Compatible Manufacturer Model Number | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| For Use with Mfr. Model Number | VLS3P030R2, VLS3P063R2, VLS3P080R2, VLS3P100R2, VLS3P125R2 |
| Product Or Component Type | contact block |
| Fire Resistance | 850°C IEC 60695-2-11 |
| Mounting Support | DIN rail |
| Mechanical Robustness | vibrations 2 to 100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Network Frequency | 50/60 Hz |
| Product Certifications | cULus || GL |
| Tightening Torque | control circuit 0.8-1 N.m screw clamp terminals |
| Network Type | AC || DC |
| Contact Operation | early-break 1 NC |
| Minimum Output Current | 10 mA |
| [Ie] Rated Operational Current | 6 A AC-15)24 V AC || 6 A AC-15)48 V AC || 6 A AC-15)127 V AC || 3 A AC-15)240 V AC || 3 A DC-13)24 V DC || 1.5 A DC-13)48 V DC || 0.55 A DC-13)127 V DC || 0.27 A DC-13)240 V DC |
| Minimum Output Voltage | 5 V |
| Range | TeSys |
| [Ith] Conventional Free Air Thermal Current | 10 A 55°C |
| Device Short Name | VLSA |
| Contacts Type And Composition | 1 NC |
| Range Compatibility | TeSys (TeSys VARIO LS) VLS3P || TeSys (TeSys VARIO LS) VLS1P |
| Performance Level | high performance |
| Connections - Terminals | control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end |
| Ambient Air Temperature For Operation | -25-55°C |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Mounting Location | right || left |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Package Quantity | 1 |
