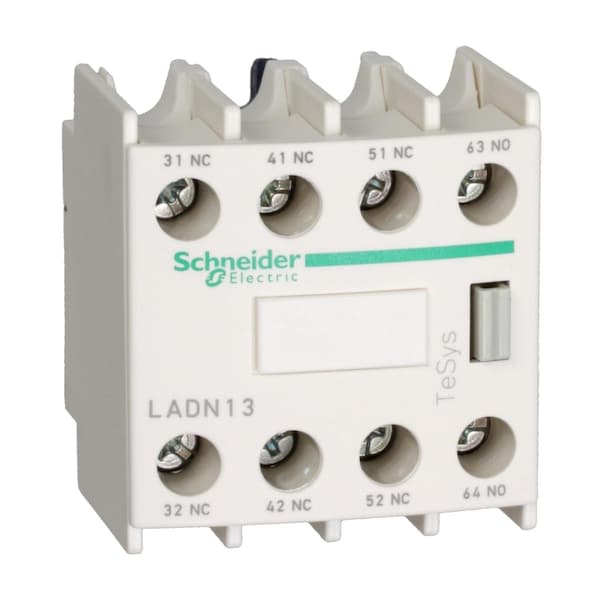

Bloque de contactos auxiliares, TeSys Deca, 2NO + 2NC, montaje frontal, terminales de anillo de orejeta.
| Item - Relay | auxiliary contact block |
|---|---|
| Mounting - Relay | front |
| Item | Contactor Auxiliary Contact Block Iec |
| Standards | EN/IEC 60947-5-1 || UL || CSA || CCC || EAC || UKCA |
| Width | 44 mm |
| Color | Dark Gray |
| Depth | 42 mm |
| Height | 48 mm |
| Operating Voltage | 690 V AC 25 |
| Auxiliary Contacts Operation | instantaneous |
| Permissible Short-Time Rating | 100 A 60°C 1 s, 120 A 60°C 500 ms, 140 A 60°C 100 ms |
| Pole Contact Composition | 2 NO + 2 NC |
| Operating Altitude | 9842.52 ft (3000 m) |
| Device Short Name | LADN |
| Environmental Characteristic | normal environment |
| Protection Type | gG fuse 10 A |
| Ip Degree of Protection | IP20 conforming to IEC 60529 |
| Mechanical Durability | 30 Mcycles |
| [Ie] Rated Operational Current | 6 A at 120 V AC-15, 1.04 A at 690 V AC-15, 0.55 A at 125 V DC-13, 0.1 A at 600 V DC-13 |
| Minimum Switching Current | 5 mA |
| Insulation Resistance | > 10 MOhm |
| [Ith] Conventional Free Air Thermal Current | 10 A (at 60°C) |
| Minimum Switching Voltage | 17 V |
| Range | TeSys, Deca |
| Tightening Torque | 1.7 N.m 3.5-3.5 mm² flat Ø 6 mm M3.5, 1.7 N.m Philips No 2 M3.5, 1.7 N.m pozidriv No 2 M3.5 |
| Product Name | TeSys Deca |
| Range Compatibility | TeSys D CAD, TeSys D LC1D, TeSys F LC1F, TeSys F CR1F, TeSys Deca CAD, TeSys Deca LC1D |
| Connections - Terminals | lugs-ring terminals 8 mm) |
| Ambient Air Temperature For Operation | -5-60°C |
| Ambient Air Temperature For Storage | -60-80°C |
| Protective Treatment | TH IEC 60068 |
| Irms Rated Making Capacity | 140 A AC conforming to IEC 60947-5-1, 250 A DC conforming to IEC 60947-5-1 |
| Non-Overlap Time | 1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact |
| [Ue] Rated Operational Voltage | 690 V AC 25...400 Hz |
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-5-1, 600 V UL, 600 V CSA |
| Package Quantity | 1 |
