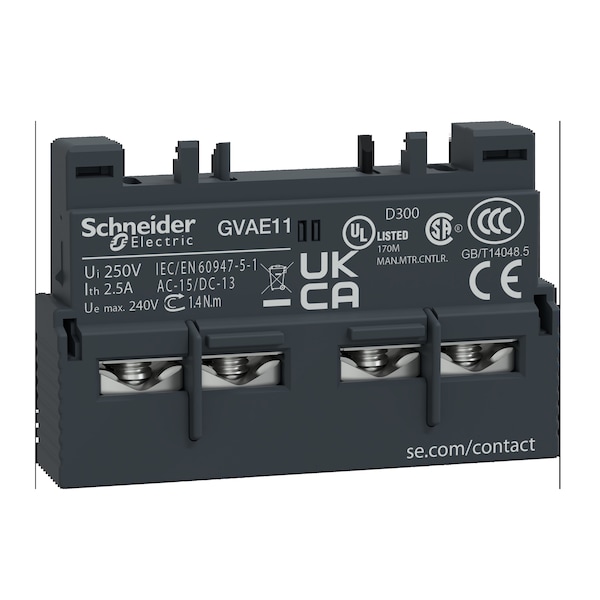

Contacto auxiliar, 2.5A, 1NC, 1NO.
| Item | Auxiliary Contact |
|---|---|
| Number of NO Aux. Contacts | 1 |
| Number of NC Aux. Contacts | 1 |
| Amps | 2.5 A |
| Mounting | Front |
| For Use With | GV2; GV3P Series |
| Number of Contacts | 2 |
| Voltage | 24 to 240V AC, 24 to 60V DC |
| Depth | 29 mm |
| Features | Mercury Free, Toxic Heavy Metal Free |
| VA Rating | 120 VA at 110/120V AC, 120 VA at 230/240V AC, 48 VA at 24V AC, 60 VA at 48V AC |
| Width | 45 mm |
| Standards | UKCA |
| Height | 11 mm |
| Maximum Voltage Rating | 240 V AC, 60 V DC |
| Current AC | 2.5 A |
| Number of Normally Open Contacts | 1 |
| Terminal Connection Type | Screw Clamp Terminals |
| Compatible with Series | TeSys, TeSys Deca |
| Number of Normally Closed Contacts | 1 |
| Package Quantity | 1 |
