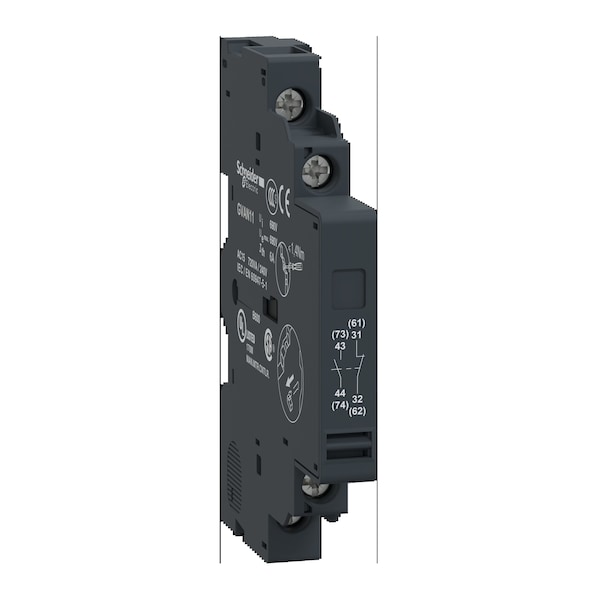

Contacto auxiliar, 6A, 1NC, 1NO
| Item | Auxiliary Contact |
|---|---|
| Number of NO Aux. Contacts | 1 |
| Number of NC Aux. Contacts | 1 |
| Amps | 6 A |
| Mounting | Side |
| For Use With | GV2; GV3P Series |
| Number of Contacts | 2 |
| Voltage | 48 to 690V AC, 24 to 240V DC |
| Color | Dark Gray |
| Standards | UKCA |
| Width | 9.3 mm |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Height | 89 mm |
| Depth | 66 mm |
| VA Rating | 300 VA at 48V AC, 414 VA at 690V AC, 500 VA at 110/127V AC, 500 VA at 500V AC, 650 VA at 440V AC, 720 VA at 230/240V AC, 850 VA at 380/415V AC |
| Compatible with Series | TeSys, TeSys Deca |
| Number of Normally Open Contacts | 1 |
| Terminal Connection Type | Screw Clamp Terminals |
| Current AC | 6 A |
| Maximum Voltage Rating | 240 V DC, 690 V AC |
| Number of Normally Closed Contacts | 1 |
| Minimum Switching Voltage | 17 V |
| Minimum Switching Current | 5 mA |
| Rated Operational Power in W | 120 W 240 V DC-13 100000 cycles; 140 W 110 V DC-13 100000 cycles; 140 W 24 V DC-13 100000 cycles; 180 W 60 V DC-13 100000 cycles; 240 W 48 V DC-13 100000 cycles |
| Conventional Free Air Thermal Current | 6 A |
| Rated Operational Power in VA | 300 VA 48 V AC-15 100000 cycles; 414 VA 690 V AC-15 100000 cycles; 500 VA 110 to 127 V AC-15 100000 cycles; 500 VA 500 V AC-15 100000 cycles; 650 VA 440 V AC-15 100000 cycles; 720 VA 230 to 240 V AC-15 100000 cycles; 850 VA 380 to 415 V AC-15 100000 cycles |
| Product Or Component Type | Auxiliary contact block |
| Mechanical Durability | 100000 cycles |
| Rated Insulation Voltage | 600 V UL 508; 690 V IEC 60947-1; 600 V CSA C22.2 No 14 |
| Rated Operational Voltage | 48 to 690 V AC; 24 to 240 V DC |
| Mounting Location | Left side |
| Environmental Characteristic | Normal environment |
| Pole Contact Composition | 1 NO + 1 NC |
| Tightening Torque | 12.39 lbf.in (1.4 N.m) screw clamp terminals |
| Protection Type | GB2CB to circuit breaker 10 A, GG fuse |
| Product Compatibility | GV2ME; GV2RT; GV2L; GV3P; GV3L; GV2LE; GV2P |
| Package Quantity | 1 |
