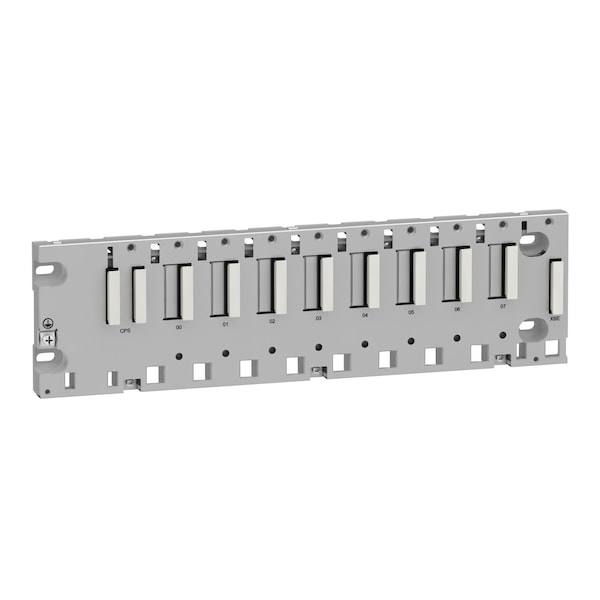

Placa posterior, Modicon X80, 8 ranuras, panel, placa de montaje o montaje en riel DIN.
| Item | Rack M340 - 8 slots - panel,plate or DI |
|---|---|
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 and type 2, EN/IEC 61850-3, location G |
| Depth | 19 mm |
| Height | 103.7 mm |
| Width | 372.8 mm |
| Number of slots | 8 bus X |
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | 0-60°C |
| Fixing Mode | by 4 screws 4.32-6.35 mm panel || by 4 M6 screws plate || by clips 35 mm symmetrical DIN rail |
| Relative Humidity | 10-95 % without condensation |
| Accessory / Separate Part Type | rack |
| Product Compatibility | I/O module || BMXP34 processor || BMXCPS power supply || specific application module |
| Protective Treatment | TC |
| Electrical Connection | 1 connector (XBE) expansion module |
| Power Consumption In W | 2 W |
| Range of Product | Modicon X80 |
| Product or Component Type | backplane |
| Package Quantity | 1 |
