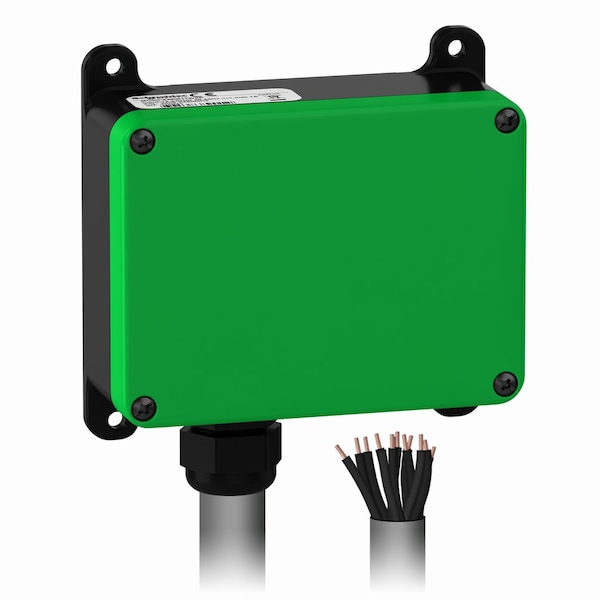

Estación base, control remoto de bolsillo Harmony, 5 salidas de relé, pre-cableado, cable de 1.5m, 12...24V DC.
| Height | 117 mm |
|---|---|
| Standards | CE |
| Width | 120 mm |
| Material | ABS + PC |
| Depth | 51 mm |
| Item | RECEIVER, 5 RELAY OUTPUT, 12-24VDC |
| Maximum Switching Voltage | 240 V AC +/- 20 %) |
| Maximum Switching Current | 10 A |
| Provided Equipment | internal antenna |
| Transmission Frequency | 2.4 GHz |
| Electrical Durability | 100000 cycles |
| Cable Entry | cable pre-wired |
| Relay Type | motion relay outputs relay outputs |
| Ip Degree of Protection | IP66 |
| Product or Component Type | base station |
| Radio Agreement | FCC, IC |
| Range of Product | Harmony Pocket Remote |
| Maximum Sensing Distance | 300 m in free field |
| Communication Network Type | wireless |
| Ambient Air Temperature For Operation | -20-55°C |
| Device Short Name | ZARB |
| Number of Relays | 5 |
| Mechanical Durability | 10000000 cycles |
| Relative Humidity | 0-97 % |
| Safety Outputs | 2 NC relay outputs |
| [Us] Rated Supply Voltage | 12...24 V DC |
| Fixing Mode | 4 holes |
| Ambient Air Temperature For Storage | -40-70°C |
| Package Quantity | 1 |
