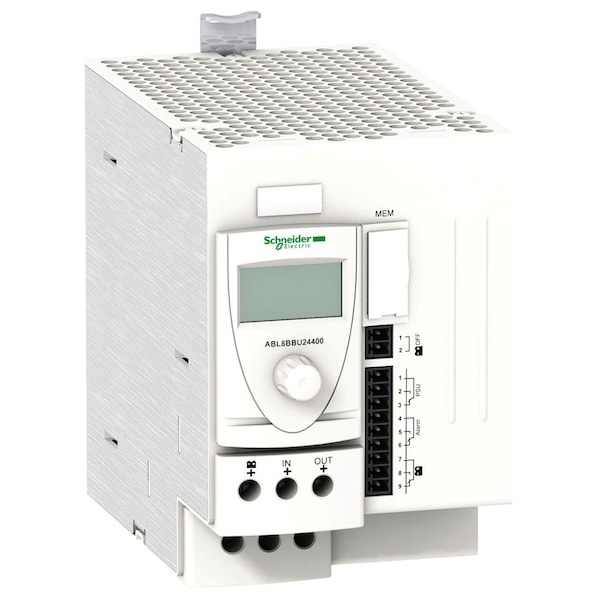

Este módulo de control de batería Schneider Electric es ideal para sistemas de 24 a 28.8V DC, con una capacidad de 40A. Se monta en riel DIN y es perfecto para aplicaciones industriales.
| Item | Battery Control Module |
|---|---|
| Output Voltage | (Ubattery-0.5) V battery mode DC || (Uin-0.25) V nominal mode DC |
| Output Amps | 40 A |
| Standards | UL 508, CSA C22.2 No 60950-1 |
| Output Protection Type | against overload 1.5 x In, against short-circuits battery-backed mode, automatic reset, against short-circuits power-supplied mode |
| Fixing Mode | by clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical |
| Number of Output Channels | 1 |
| Vibration Resistance | 2 gn 11.9-150 Hz)IEC 61131-2, 3.5 mm 3-11.9 Hz)IEC 61131-2 |
| Input Voltage Limits | 22...30 V |
| Ambient Air Temperature For Storage | -40-85°C |
| Maximum Output Current | 40 A |
| Marking | CE |
| Input Voltage | 24 to 28.8V DC |
| Activation Threshold | adjustable 22...36 V |
| Relative Humidity | 0-90 % during operation, 0-95 % during storage |
| Ambient Air Temperature For Operation | -25-60°C |
| Product or Component Type | battery control module |
| Connections - Terminals | diagnostic relay removable screw terminal block 1 x 0.75 mm², input connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8, output connection screw type terminals 2 x 0.5...2 x 10 mm² AWG 20...AWG 8 |
| Maximum Power Dissipation In W | 12 W |
| Pvc Free | Yes |
| Environmental Characteristic | EMC IEC 61000-6-3, EMC IEC 61000-6-2, safety IEC 60950-1, safety EN/IEC 61204-3 |
| Dielectric Strength | 500 V between input and ground, 500 V between output and ground |
| Ip Degree of Protection | IP20 conforming to EN/IEC 60529 |
| Overvoltage Category | class II VDE 0106-1 |
| Local Signalling | for alarm status 1 C/O relay, for battery status 1 C/O relay, for power supply status 1 C/O relay, for module status LCD screen |
| Mtbf Reliability | 707945 H at 24 V DC with UTE C80-810 calculation method |
| Current Consumption | 0.6 A on load, 0.1 mA no load, <= 40.6 A |
| Range of Product | Phaseo |
| Name Of Test | electrostatic discharges EN/IEC 61000-4-2 || emission EN 61000-6-3 || induced electromagnetic field EN/IEC 61000-4-6 level 3 || radiated electromagnetic field EN/IEC 61000-4-3 level 3 || rapid transient IEC 61000-4-4 level 3 || surge EN/IEC 61000-4-5 level 2 || conducted/radiated emissions EN 55022 Class B, 20 % |
| Product Certifications | RCM || EAC |
| Mounting | Din Rail |
| Package Quantity | 1 |
